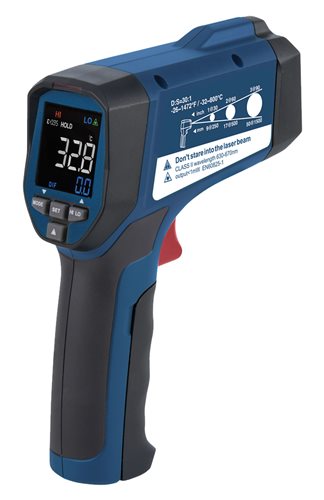

R2320 Infrared (IR) Thermometer, 30:1, 1472°F (800°C)

R2320 Infrared (IR) Thermometer, 30:1, 1472°F (800°C)

REED R2320 Offers

This infrared thermometer features a 30:1 distance to spot ratio and is capable of measuring temperatures up to 1472°F (800°C). The R2320 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).

Features

-Built-in laser pointer identifies target area
-User selectable °F or °C
-30:1 Distance to Spot size ratio
-Bright color display (EBTN)
-Digitally adjustable emissivity
-Max, Min, Average and Differential readings
-Audible (beep) and visual (tri-color LED) user adjustable alarms
-Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
-Trigger lock for continuous monitoring
-Low battery indication and auto shut off

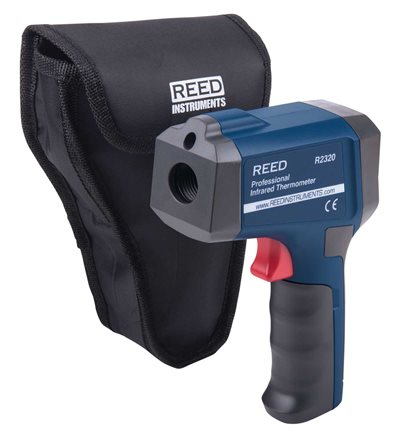

What's included with the REED R2320

What's included with the REED R2320

  • Infrared Thermometer
  • Carrying Case
  • Battery
slide {0} of {1}, zoom in, R2320 Infrared Thermometer Video 1:31
slide {0} of {1}, zoom in, R2320 1
slide {0} of {1}, zoom in, R2320 2
slide {0} of {1}, zoom in, R2320 3
slide {0} of {1}, zoom in, R2320 4
slide {0} of {1}, zoom in, R2320 5
slide {0} of {1}, zoom in, R2320 6
slide {0} of {1}, zoom in, R2320 7
REED Instruments

REED Instruments

Since 2004, REED Instruments has been providing quality portable precision test and measurement instruments. We offer over 250 instruments that are used every day by industrial maintenance teams, quality control departments, HVAC/R contractors, electricians and health & safety professionals among others.

R2320 Manual R2320 Manual
R2320 Datasheet R2320 Datasheet

REED R2320 Specifications
Temperature Range -26 to 1472°F (-32 to 800°C)
Accuracy Basic: ±1.8% of reading or 3.6°F (1.8°C)
Resolution 0.1 °F (0.1 °C)
Optical Resolution (D:S) 30:1
Spectral Response 8 to 14 µm
Emissivity 0.1 to 1.0 (Adjustable)
Response Time 250 ms
Backlit Display Yes (EBTN)
Display Hold Yes
High/Low Alarms Yes
Alarm Indicators LED (High: Red, Low: Blue)
Max/Min Yes
Average and Differential Yes
°F/°C Switchable Yes
Trigger Lock Yes
Tripod Mountable Yes
Laser Type Class II
Low Battery Indicator Yes
Power Supply 9 V battery
Battery Life Approx. 10 hours (with continuous use, backlight on)
Product Certifications CE, RoHS
Operating Temperature 32 to 122 °F (0 to 50 °C)
Storage Temperature -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 10 to 90%
Maximum Operating Altitude 6561' (2000 m)
Maximum Storage Altitude 39370' (12000 m)
Dimensions 7 x 4.98 x 2" (179 x 126.5 x 53 mm)
Weight 10.95 oz (310 g)
