Sensor
|
|
Sensor Type
|
1.0"-type (0.52" x 0.35") Exmor RS® CMOS sensor, aspect ratio 3:2
|
|
Number of Pixels (Effective)
|
Approx. 20.1 Megapixels
|
|
Lens
|
|
Lens type
|
ZEISS Vario-Sonnar T* Lens, 15 elements in 12 groups (8 aspheric elements including AA lens)
|
|
F-number (Maximum Aperture)
|
F2.8(W)-4.5(T)
|
|
ND Filter
|
-
|
|
Focal length (f=)
|
f = 9.0-72 mm
|
|
ANGLE OF VIEW (35 MM FORMAT EQUIVALENT)
|
84 deg.–12 deg. 30 min. (24–200 mm22)23
|
|
Focus Range (From the Front of the Lens)
|
AF (W: Approx. 0.27 ft [8 cm] to Infinity, T: Approx. 3.29 ft [100 cm] to Infinity)
|
|
Optical Zoom
|
8.0x
|
|
Clear Image Zoom (Still Image)
|
20 M Approx. 16x/10 M Approx. 22x/5.0 M Approx. 32x/VGA Approx. 121x24
|
|
Clear Image Zoom (Movie)
|
4K: Approx. 12x / HD: Approx. 16x24
|
|
Digital Zoom (Still Image)
|
20 M Approx. 32x/10 M Approx. 44x/5.0 M Approx. 64x/VGA Approx. 121x24
|
|
Digital Zoom (Movie)
|
Approx. 32x24
|
|
Screen
|
|
Screen Type
|
7.5 cm(3.0-type)(4:3)/921,600 dots/Xtra Fine/TFT LCD
|
|
Adjustable Angle
|
Up by approx. 180 degrees, down by approx. 90 degrees
|
|
Display Selector (Finder/Lcd)
|
Auto/EVF (Manual)/Monitor (Manual)
|
|
MS Assist Magnification
|
5.3x, 10.7x
|
|
Touch Panel
|
Yes
|
|

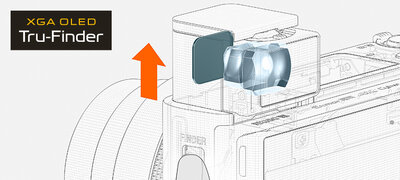

Viewfinder
|
|
Screen Type/Number of Dots
|
0.39-type electronic viewfinder(OLED), 2,359,296 dots
|
|
Field Coverage
|
100%
|
|
Magnification
|
Approx. 0.59x with 50 mm lens at infinity, -1m-1(diopter) (35 mm equiv.)
|
|
Eye Point
|
Approx. 20 mm from the eyepiece, 19.8 mm from the eyepiece frame at -1 m-1(diopter) (CIPA standard)
|
|
Diopter Adjustment
|
-4.0 to +3.0 m-1
|
|
Brightness Control
|
Auto, Manual (5 steps)
|
|
Camera
|
|
Image Processing Engine
|
Yes (BIONZ X)
|
|
STEADYSHOT (STILL IMAGE)
|
Optical
|
|

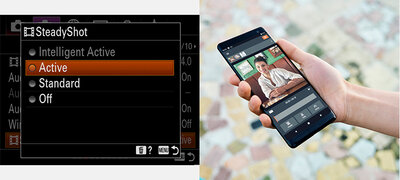

STEADYSHOT (MOVIE)
|
Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type)
|
|

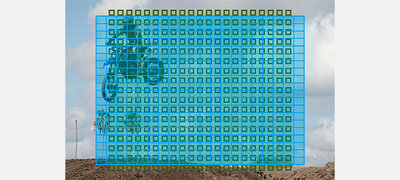

Focus Type
|
Fast Hybrid AF (phase-detection AF/contrast-detection AF)
|
|
Focus Mode
|
Single-shot AF, Automatic AF, Continuous AF, DMF, Manual Focus
|
|

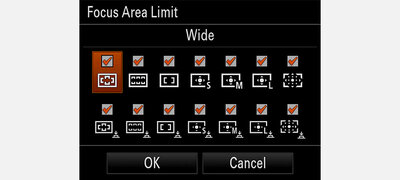

Focus Area
|
Wide (357 points [phase-detection AF], 425 points[contrast-detection AF]), Zone, Center, Flexible Spot (S/M/L), Expanded Flexible Spot, Tracking (Wide/Zone/Center/Flexible Spot[S/M/L]/Expanded Flexible Spot)
|
|
OBJECT TRACKING
|
Yes (Tracking)
|
|
EYE AF
|
[Still images] Human (Right/Left Eye Select)/Animal; [Movie] Human (Right/Left Eye Select)
|
|
Light Metering Mode
|
Multi Pattern, Center-Weighted, Spot, Entire Screen Avg, Highlight
|
|
Exposure Compensation
|
+/- 3.0EV, 1/3EV step
|
|
ISO Sensitivity (Still Image)(Recommended Exposure Index)
|
Auto (ISO100-12800, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (extendable to ISO64/80), Multi-Frame NR:Auto (ISO100-12800), 100/200/400/800/1600/3200/6400/12800/2560025
|
|
ISO Sensitivity (Movie)
|
Auto: (ISO100–ISO12800 Level, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
|
|
White Balance Modes
|
Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Flash, Underwater Auto, C.Temp./Filter, Custom
|
|
WB Micro Adjustment
|
Yes(G7 to M7,57-step)(A7 to B7,29-step)
|
|
Shutter Speed
|
iAuto (4" - 1/2000)/Program Auto (30" - 1/2000)/Manual (Bulb, 30" - 1/2000)/Aperture Priority (30" - 1/2000)/Shutter Priority (30" - 1/2000)26
|
|
Electronic Shutter
|
[Single Shooting] iAuto (4" — 1/32000)/Program Auto(30" — 1/32000)/Manual(30" — 1/32000)/Aperture Priority(30" — 1/32000)/Shutter Priority(30" — 1/32000);, [Continuous Shooting/Single Burst Shooting] 1/8 — 1/32000
|
|
Aperture
|
iAuto (F2.8/F11 [W])/Program Auto (F2.8/F11 [W])/Manual (F2.8/F11 [W])/Shutter Priority (F2.8/F11 [W])/Aperture Priority (F2.8/F11 [W])
|
|
Image Control
|
Contrast, Saturation, Sharpness, Creative Style, Color Space (sRGB/Adobe RGB), Quality (RAW/RAW&JPEG [Extra fine, Fine, Standard]/JPEG [Extra fine, Fine, Standard])
|
|
Noise Reduction
|
Long exposure NR: On/Off, available of shutter speeds longer than 1/3 sec., high ISO NR: Normal/Low/Off, Multi Frame NR: Auto, ISO 100–25600
|
|
Dynamic Range Functions
|
Off, Dynamic Range Optimizer (Auto/Level 1–5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0–6.0EV, 1.0EV step)
|
|
Shooting Mode
|
AUTO(Intelligent Auto/Superior Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR(Memory Recall) [body 3 sets/memory card 4 sets], Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), HFR Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection
|
|
Scene Selection
|
Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Fireworks, High Sensitivity
|
|
Continuous Shooting Speed (maximum) (with max. recording pixels)
|

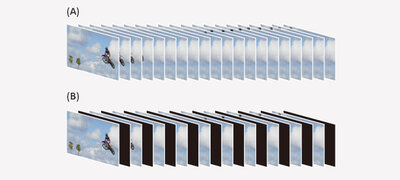

[AUTO/Electronic Shutter] Continuous Shooting Hi: approx. 20fps, Continuous Shooting Mid: approx. 10fps, Continuous Shooting: approx. 5.0fps, Single Burst Shooting Hi: approx. 90fps27, Single Burst Shooting Mid: approx. 60fps27, Single Burst Shooting Low: approx. 30fps27 [Mechanical Shutter] Continuous Shooting Hi: -, Continuous Shooting Mid: approx. 10fps, Continuous Shooting: approx. 3.0fps28, 29, 30
|
|
Self-Timer
|
10sec./5sec./2sec/3 or 5 consecutive shots with 10sec. 5sec. or 2sec. delay selectable/Bracketing shots with 10sec. 5sec. or 2sec. delay selectable/Single Burst shots with 10sec. 5sec. or 2sec. delay selectable
|
|
Drive Modes
|
Single, Continuous shooting, Single Burst Shooting, Self-timer, Self-timer(cont.), Cont.-bracketing31, Single-bracketing31, White balance bracketing31, DRO bracketing31
|
|

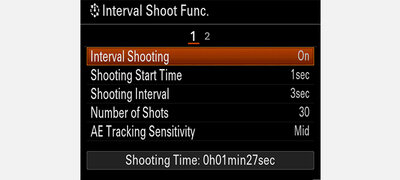

INTERVAL REC
|
Yes (1–60 sec. interval, 1–9999 shots, AE lock/AE tracking(High/Mid/Low))32
|
|
Panorama (Shooting)
|
Sweep Panorama
|
|
Picture Effect
|
[Still Image]:Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolor, Illustration, [Movie]:Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono.
|
|
Creative Style
|
Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box
|
|
Picture Profile
|
off/PP1-PP10 (Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
|
|
Number of Recognized Scenes
|
[Still Image]: Superior Auto: 44 / iAuto: 33, [Movie]: 44
|
|
Flash
|
|
Flash Mode
|
Auto / Flash On / Slow Synchro / Rear Sync / Flash Off
|
|
Flash Type
|
Built-in, manual pop-up
|
|
AF Illuminator
|
Auto / Off
|
|
Bracketing
|
Yes
|
|
Flash Range
|
ISO Auto: Approx. 1.31 ft to 19.35 ft (0.4 m to 5.9 m) (W)/Approx. 3.28 ft to 10.17 ft (1.0 m to 3.1 m) (T), ISO12800: up to Approx. 40.68 ft (12.4 m) (W)/Approx. 22.96 ft (7.0 m) (T)
|
|
Recording
|
|
Compatible Recording Media
|
[XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60 Mbps/50 Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [AVCHD/Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro33, Memory Stick Micro(Mark2)33, SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)33
|
|
Recording Format
|
[Still Image]:JPEG(DCF Ver.2.0,Exif Ver.2.31,MPF Baseline compliant), RAW(Sony ARW 2.3 format), [Movie]:XAVC S, AVCHD format Ver.2.0 compatible
|
|
Recording Format (Movie Audio)
|
XAVC S: LPCM 2ch, AVCHD: Dolby Digital (AC-3) 2ch (Dolby Digital Stereo Creator)
|
|
Color Space (Still)
|
sRGB, Adobe® RGB
|
|
DCF/DPOF
|
DCF/DPOF/EXIF/MPF
|
|
Still Image Number of recorded pixels (Image Size)
|
3:2 mode: 20 M(5,472×3,648)/10 M(3,888×2,592)/5 M(2,736×1,824), 4:3 mode: 18 M(4,864×3,648)/10 M(3,648×2,736)/5M(2,592×1,944)/VGA, 16:9 mode: 17 M(5,472×3,080)/7.5 M(3,648×2,056)/4.2 M(2,720×1,528), 1:1 mode: 13 M(3,648×3,648)/6.5 M(2,544×2,544)/3.7 M(1,920×1,920), Sweep Panorama: Wide(12,416×1,856/5,536×2,160), Standard(8,192×1,856/3,872×2,160)
|
|
Movie Recording Mode (NTSC)
|
NTSC/PAL Selector: [NTSC] AVCHD: 24 M FX (1,920x1,080/60i)/17 M FH (1,920x1,080/60i), XAVC S 4K: 30p 100 M (3,840x2,160/30p)/30p 60 M (3,840x2,160/30p)/24p 100 M (3,840x2,160/24p)/24p 60 M (3,840x2,160/24p), XAVC S HD: 60p 50 M (1,920x1,080/60p)/60p 25 M (1,920x1,080/60p)/30p 50 M (1,920x1,080/30p)/30p 16 M (1,920x1,080/30p)/24p 50 M (1,920x1,080/24p)/120p 100 M (1,920x1,080/120p)/120p 60 M (1,920x1,080/120p)
|
|
Movie Recording Mode (PAL)
|
NTSC/PAL Selector: [PAL] mode AVCHD: 24 M FX (1,920 x 1,080/50i)/17 M FH (1,920 x 1,080/50i), XAVC S 4K: 25p 100 M (3,840 x 2,160/25p)/25p 60 M (3,840 x 2,160/25p), XAVC S HD:50p 50 M (1,920 x 1,080/50p)/50p 25 M (1,920 x 1,080/50p)/25p 50 M (1,920 x 1,080/25p)/25p 16 M (1,920 x 1,080/25p)/100p 100 M (1,920 x 1,080/100p)/100p 60 M (1,920 x 1,080/100p)
|
|
HFR
|
Recording: NTSC/PAL Selector: [PAL] mode XAVC S HD: 50p 50M(1920x1080/250fps), 50p 50M(1920x1080/500fps), 50p 50M(1920x1080/1000fps)/25p 50M(1920x1080/250fps), 25p 50M(1920x1080/500fps), 25p 50M(1920x1080/1000fps), NTSC/PAL Selector: [NTSC] mode XAVC S HD:60p 50M(1,920x1,080/240fps), 60p 50M(1,920x1,080/480fps), 60p 50M(1,920x1,080/960fps)/30p 50M(1,920x1,080/240fps), 30p 50M(1,920x1,080/480fps), 30p 50M(1,920x1,080/960fps)/24p 50M(1,920x1,080/240fps), 24p 50M(1,920x1,080/480fps), 24p 50M(1,920x1,080/960fps) Sensor Readout Number of effective pixels: Quality Priority:240fps/250fps(1,824x1,026),480fps/500fps(1,824x616),960fps/1000fps(1,244x420)/Shoot Time Priority:240fps/250fps(1,824x616),480fps/500fps(1,292x436),960fps/1000fps(912x308)
|
|
Still Image Number of recorded pixels (Image Size) during Movie
|
16:9 mode: 17M (5472×3080)/7.5M (3648×2056)/4.2M (2720×1528)
|
|
Proxy Recording
|
Yes (1280 x 720 [Approx. 9 Mbps])
|
|
Interface
|
|
Input and Output Terminals
|

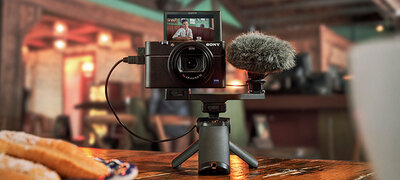

Multi/Micro USB Terminal34, High-Speed USB (USB2.0), Micro HDMI, Microphone jack (3.5-mm Stereo mini jack)
|
|
NFC
|
NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing
|
|
WI-FI
|
Yes(IEEE802.11b/g/n(2.4GHz band))
|
|
Bluetooth
|
Yes (Bluetooth Standard Ver. 4.1 (2.4 GHz band))
|
|
Power
|
|
Power Source
|
DC 3.6 V (supplied battery)/DC 5.0 V (supplied AC Adapter)
|
|
Battery System
|
Rechargeable battery pack (NP-BX1)
|
|
Power Consumption (Camera Mode)
|
Approx. 2.1W with LCD monitor and approx. 2.3W with viewfinder (CIPA standard)
|
|
USB Charge/USB Power Supply
|
Yes (Shooting, Playback)
|
|
BATTERY LIFE(STILL IMAGES)(CIPA)
|
Monitor:Approx. 260/Approx. 130 min., Monitor (When Auto Monitor off is set to 2 sec):Approx. 310/Approx. 155 min., ViewFinder: Approx. 240/Approx. 120 min.35
|
|
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA)
|
Monitor:Approx. 40 min., ViewFinder: Approx. 40 min.36, 37, 38
|
|
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA)
|
Monitor:Approx. 70 min., ViewFinder:Approx. 70 min.36, 37
|
|
Others
|
|
PlayMemories Camera Apps
|
-
|
|
Shooting Functions
|
Face Detection, Face Registration, Still Image Recording (during movie recording), Smile shutter, Grid Line, Quick Navi, Digital Level Gauge (pitch and roll), WB Bracket, DRO Bracketing, MF Assist, Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, Step Zoom/Quick Zoom, Self-portrait timer, TC/UB, Copyright Info, ISO Auto Minimum Shutter Speed, PC Remote Control, Gamma Disp. Assist, [Mov]AF Tracking Sensitivity, [Mov]AF Drive Speed, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, Touch Pad, My Menu, My Dial
|
|

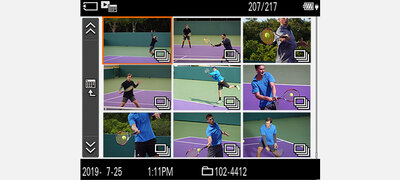

Playback Functions
|
BRAVIA Sync (Control for HDMI), 9/25-frame index view, Auto Orientation, Slideshow, Forward/Rewind (Movie), Delete, Protect, Motion Shot Video, Beauty Effect, Photo Capture, Rating, Automatic Image Rotation
|
|
TRILUMINOS Color
|
Yes39
|
|
4K image output
|
Yes
|
|
Operating Temperature
|
0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.
|
|
Print
|
|
Print
|
Exif Print, PRINT Image Matching (PIM3)
|
|
Size & Weight
|
|
WEIGHT (CIPA COMPLIANT)
|
Approx. 10.7 oz (302 g) (Battery and Memory Card are included) / Approx. 9.8 oz (275 g) (Body Only)
|
|
DIMENSIONS (W X H X D) (APPROX.)
|
101.6 x 58.1 x 42.8 mm(4 in. x 58.1 mm x 1 11/16 in.)
|
|
Supplied Accessory
|
|
WHAT'S IN THE BOX
|
Rechargeable Battery Pack (NP-BX1), AC Adapter, Micro USB cable, Wrist Strap, Strap Adapter, Instruction Manual
|
