| Lens | |
|---|---|
| F-NUMBER (MAXIMUM APERTURE) | F1.8 - F4.0 |
| FOCAL LENGTH | f = 0.27–0.69" |
| FOCAL LENGTH (35 MM FORMAT EQUIVALENT) | 18–50 mm |
| FOCUS RANGE (FROM THE FRONT OF THE LENS) | Approx. 0.17 ft (5 cm) to infinity |
| General | |

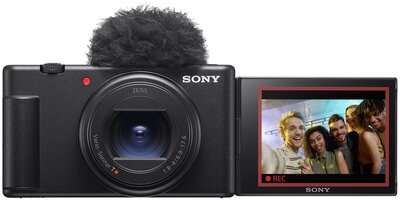

| CAMERA TYPE | Digital camera |
| Camera Section | |

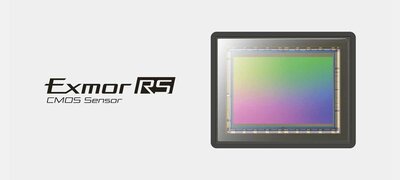

| Sensor Type | 1.0-type (0.52 x 0.35") Exmor RS CMOS sensor |
| Number Of Pixels (Effective) | Still images: Approx. 20.1 megapixels22, Movies: Approx. 16.8 megapixels max.23, 22 |
| Number of Pixels (total) | Approx. 21.0 megapixels |
| BUILT-IN ND FILTER | ND (1/8 ND) |
| COLOR TEMPERATURE RANGE | 2,500 K–9,900 K |
| Recording (still images) | |
| Recording Format | JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), RAW (Sony ARW 4.0 format) |
| Image Size (pixels) [3:2] | 1.0-type L: 5,472 x 3,648 (20 M), M: 3,888 x 2,592 (10 M), S: 2,736 x 1,824 (5.0 M) |
| Image Quality Modes | RAW, RAW+JPEG, JPEG |
| Recording System (movie) | |
| MOVIE RECORDING SYSTEM (XAVC S 4K) | 29.97p (100/60 Mbps), 25p (100/60 Mbps), 23.98p (100/60 Mbps) |
| MOVIE RECORDING SYSTEM (XAVC S HD) | 119.88p (100/60 Mbps), 59.94p (50/25 Mbps), 29.97p (50/16 Mbps), 23.98p (50 Mbps), 100p (100/60 Mbps), 50p (50/25 Mbps), 25p (50/16 Mbps) |
| Recording (movie) | |
| VIDEO COMPRESSION | XAVC S: MPEG-4 AVC/H.264 |
| AUDIO RECORDING FORMAT | LPCM 2ch (48 kHz 16 bit) |
| Movie Functions | |
| Slow & quick motion (shooting frame rate) | Yes |
| PROXY RECORDING | Yes |
| TC/UB | Yes |
| Recording System | |
| Memory Card Slot | Multi-slot reader for Memory Stick Duo™/SD memory card |
| Focus System | |
| Focus Type |
Fast Hybrid AF (phase-detection AF / contrast-detection AF) Human, Animal |
| Focus Point | Still images: Max. 315 points (phase-detection AF), Movies: Max. 273 points (phase-detection AF) |
| Other Features | AF Subj. Shift Sensitivity (Movie), AF Transition Speed (Movie), Circ. of Focus Point |
| Exposure Control | |
| Metering Type | 1200-zone evaluative metering |
| Metering Sensitivity | EV0 to EV24 (ISO 100 equivalent) |
| Exposure Compensation | +/- 3.0 EV (1/3 EV steps) |
| ISO Sensitivity | Still images: ISO 125–12,800 (expandable to ISO 80–12,800), AUTO (ISO 125–12,800, selectable lower limit and upper limit), Movies: ISO 125–12,800 equivalent, AUTO (ISO 125–12,800, selectable lower limit and upper limit) |
| Anti-Flicker Shoot. | - |
| Viewfinder | |
| Viewfinder Type | - |
| LCD Screen | |
| Monitor Type | 2.95 inch (3.0-type) wide type TFT |

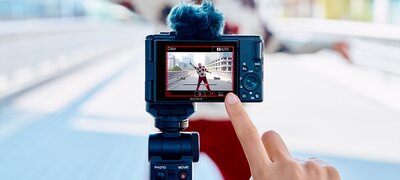

| Touch Panel | Yes |
| Number of Dots | 921 600 dots |
| Adjustable Angle | Opening Angle: Approx. 176 °, Rotation Angle: Approx. 270 ° |
| Other Features | |
| OTHER FEATURES | Cinematic Vlog Setting, My Image Style, Creative Look, Product Showcase Set., Background Defocus, Soft Skin Effect, Custom function, Picture Profile |
| Clear Image Zoom | Approx. 2x |
| Shutter | |
| Shutter Type | Electronic shutter |
| Shutter Speed | Still images: 1/32000 to 1/4 s, Movies: 1/12800 to 1 s |
| Flash Sync. Speed | 1/100 s24 |
| Image Stabilization | |
| TYPE | Electronic |
| MODE | Movie: Active/Off |
| Flash | |
| TYPE | - |
| Control | Pre-flash TTL |
| Flash Compensation | +/- 3.0 EV (switchable between 1/3 EV steps) |
| External Flash Compatibility | Sony α System Flash compatible with Multi Interface Shoe |
| Drive | |
| Continuous Drive Speed (approx. max.) | Hi: 24fps25 |
| No. of recordable frames (approx.) | JPEG Extra fine L: 170 frames, JPEG Fine L: 188 frames, JPEG Standard L: 189 frames, RAW: 80 frames, RAW & JPG: 78 frames25 |
| Playback | |
| Modes | Enlarged display mode, Protect, Rating, Shot Mark (Movie), Divider Frame, Photo Capture |
| Accessibility | |

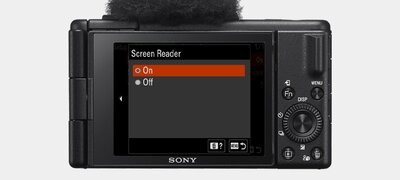

| FUNCTIONS | Screen reader, Focus Magnifier, Peaking Display, Subject Recognition in AF, Touch Focus, Touch Tracking, Touch Shutter, Touch AE, Vari-angle LCD screen, Custom function |
| Interface | |
| PC Interface | Mass-storage / MTP |
| USB TYPE-C TERMINAL | Yes (Hi-Speed USB 480 Mbps (USB 2.0) compatible) |
| WIRELESS LAN (BUILT-IN) | Yes (Wi-Fi Compatible, IEEE 802.11 b/g/n (2.4 GHz band))26 |
| Bluetooth® | Yes (Bluetooth Standard Ver. 4.2 [2.4 GHz band]) |
| HDMI CONNECTOR | HDMI micro connector (Type-D) 3,840 x 2,160 (30p/25p/24p) / 1,920 x 1,080 (60p/50p/24p) / 1,920 x 1,080 (60i/50i), YCbCr 4:2:2 8bit / RGB 8bit |
| Multi Interface Shoe | Yes |
| Mic Terminal | Yes (3.5 mm Stereo minijack) |

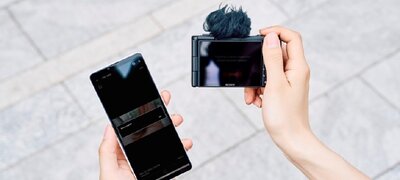

| FUNCTIONS | View on Smartphone, Remote control via Smartphone, PC Remote |
| USB Streaming | |
| VIDEO DATA FORMAT | MJPEG |
| VIDEO RESOLUTION | 1,280 x 720 (30p) |
| AUDIO DATA FORMAT | LPCM 2ch (16 bit 48 kHz) |
| Audio | |

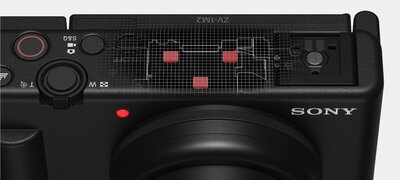

| Microphone | Built-in, stereo |
| Speaker | Built-in, monaural |
| Power | |
| Supplied Battery | Rechargeable Battery Pack NP-BX1 |
| Battery Life (Still Images) | Approx. 290 shots (LCD monitor) (CIPA standard)27 |
| Battery Life (Movie, actual recording) | Approx. 45 min (LCD monitor) (CIPA standard)28 |
| Battery Life (Movie, continuous recording) | Approx. 75 min (LCD monitor) (CIPA standard) |
| Internal Battery Charge | Yes |
| USB Power Supply | Yes |
| Power consumption with LCD screen | Still images: Approx. 1.9 W, Movies: Approx. 3.6 W |
| Operating temperature | |
| Operating Temperature | 0–40 °C/32–104 °F |
| Size & Weight | |
| Weight (with battery and memory card included) | Approx. 10.3 oz (292 g) |
| BODY ONLY (OZ. ) | Approx. 9.4 oz (266 g) |
| Dimensions (W x H x D) | Approx. 4.25 x 2.38 x 1.88" (105.5 x 60.0 x 46.7 mm) |
| Supplied Accessory | |
| WHAT'S IN THE BOX | Rechargeable Battery NP-BX1, Wind Screen, Wind Screen Adaptor |
