FX30 compact Cinema Line gateway camera

FX30 compact Cinema Line gateway camera

The compact, very accessible FX30 brings up-and-coming visual storytellers into the world of Sony's highly acclaimed Cinema Line cameras. Drawing on cinematic color science with S-Cinetone and S-Log3 for grading, it produces stunning cinematic imagery while incorporating a full array of workflow-efficient features.
FX30 compact Cinema Line gateway camera

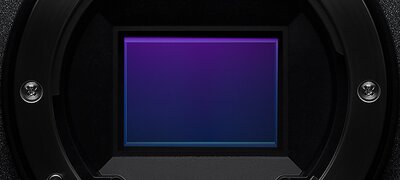

Memorable imagery from the Exmor R CMOS sensor

The FX30's back-illuminated Exmor R APS-C CMOS sensor is ready to deliver memorable imagery with outstanding resolution and a shallow depth of field. Sony's industry-leading image technology is packed into a new Super 35 format (20.1 megapixel) sensor with wide latitude. Capture the scene in 4K resolution with expressive depth of field, stunning bokeh, and cinematic freedom.

S-Cinetone for a cinematic look without grading

The FX30 incorporates S-Cinetone, based on the color science behind the highly regarded color and skin tones of the FX9 and FX6. It delivers the natural mid-tones that are essential to healthy-looking skin, plus soft colors and gorgeous highlights. Because S-Cinetone produces all this directly within the camera, it's easy to achieve a beautiful cinematic look without the necessity of post-production grading.

Recording formats for image quality and post-production

The FX30 can record 10-bit 4:2:2 video internally when using Long GOP or All-Intra compression, enabling fuller and more natural gradations and providing greater editing freedom. Recording in XAVC HS format roughly doubles compression efficiency, allowing detailed 10-bit video with 4:2:2 color sampling at comparable or lower data rates, for even better image quality and manageable file sizes.

Dual Base ISO for cleaner images in low light

The Dual Base ISO feature provides two Base ISO settings; one at ISO 800 and one at ISO 2500. This allows you to select an appropriate noise floor, for clean images, as well as maximize the FX30's dynamic range when shooting in both bright or low-light conditions. What's more, a wide 14+ stops of latitude minimizes the risk of blown highlights or blocked shadows over a wide range of lighting conditions.

Log recording for smooth cinematic color grading

For full-scale productions, the S-Log3 gamma curve provided in the FX30 has been designed for smooth gradations, and to make it easier to achieve cinematic image quality when color grading in post-production. Both S-Log3 and S-Gamut3.Cine offer high-quality color reproduction over a wide latitude, and special care has been taken to adjust the camera's output to ensure that the highest image quality can be easily achieved during post processing.

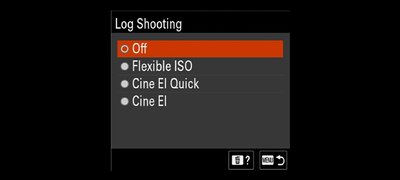

New Log shooting modes for optimized image quality

Three modes are provided for recording with the S-Log3 gamma curve. Cine EI, used in Sony's high-end Cinema Line models, offers wide latitude and the highest possible image quality. Cine EI Quick simplifies setup by automatically switching the camera's Base ISO according to the selected Exposure Index (EI). And Flexible ISO provides the greatest flexibility for exposure settings. In addition, Sony's s709 has been added to the available LUT presets.

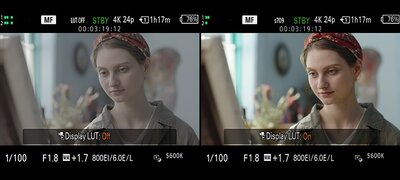

See an accurate preview of the final image with user LUTs

When recording with the S-Log3 gamma curve, the low-contrast image on the monitor can make it difficult to judge what the final image will look like. For a more accurate preview, the FX30 allows customizable LUTs to be applied to the LCD monitor preview and HDMI output, and also embedded in clips to facilitate post-production processing. In addition to the preset LUTs, up to 16 user LUTs can be imported into the camera via memory card.

Dependable, highly accurate autofocus

Sophisticated tracking features keep your subject in steady focus so you can concentrate on composition. Wide-area AF, with intelligent tracking, uses focal-plane phase-detection for tenacious subject tracking across almost the entire frame. Real-time Eye AF ensures precise focus on the face and eyes (for humans, birds, and animals), while Real-time Tracking provides reliable tracking based on Sony's unique, AI-based subject recognition.

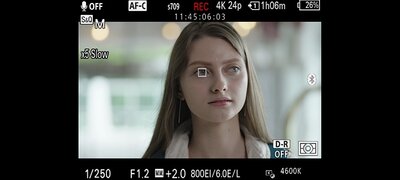

Sophisticated focus functions to handle any situation

The FX30 makes fast, accurate focusing as easy as possible. AF Assist smoothly switches between auto and manual focus, it enables easy rack focusing, and it can save time even when you are primarily using manual focus. Focus Map makes it easy to visualize depth of field while shooting, and Breathing Compensation provides a stable angle of view when rack focusing by minimizing the field-of-view shift that can occur with some lenses.

Flexible motion with up to 4K / 120p recording

The FX30 provides 4K recording at up to 120 frames per second. Extraordinarily smooth 5x (max.) slow-motion imagery with autofocus provides new expressive capability, opening a whole new world of creative potential.

Active Mode image stabilization supports handheld movie shooting

Active Mode is an optical in-body 5-axis image stabilization mode that provides increased stabilization for movie shooting. A precision gyroscope sensor accurately measures camera shake and compensates optically, making stable video possible even when shooting hand-held without a gimbal, while walking, and at 4K resolution.

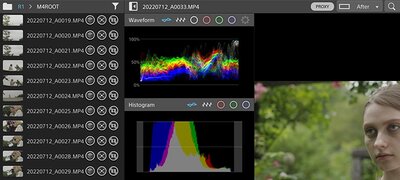

Metadata to facilitate editing with Catalyst

Sony's Catalyst Browse and Prepare software are ideal production partners for the FX30. The camera records five types of metadata: LUTs, image stabilization, breathing, camera rotation, and shot marks. These can be useful when previewing and preparing to edit in Sony's free Catalyst Browse or purchased Catalyst Prepare software.

Proxy recording for efficient editing workflow

Low-bitrate HD proxy files can be recorded simultaneously in nearly all recording formats. The smaller proxy video files can be used for editing previews prior to final 4K online editing, reducing computer load and enabling a faster workflow.

Still image shooting function

Because the FX30 can shoot stills as well as movies, it can be handy to use when you are location hunting. For example, you can use it to shoot stills that will be used in storyboards or pre-production presentations.

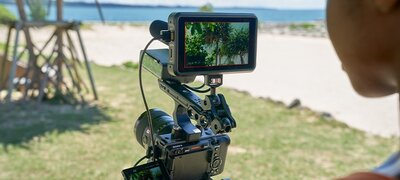

Multi-thread body makes a cage unnecessary

Designed for mobility and efficiency, the body of the FX30 features five thread holes (1/4-20 UNC) for accessories, making a cage unnecessary. While providing ample capacity for accessory attachment, the fact that no cage is required contributes to reduced system size and weight for easier handheld shooting. The XLR handle unit provides three additional thread holes so that accessories and add-ons can be stably and securely attached.

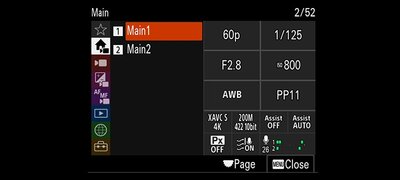

New Main menu for quick access to frequently used items

The camera's new list-style main menu gives you access to frame rate, shutter speed, and other essential shooting parameters. Main menu display can be assigned to a custom button so that parameters can be quickly checked and edited as needed prior to shooting.

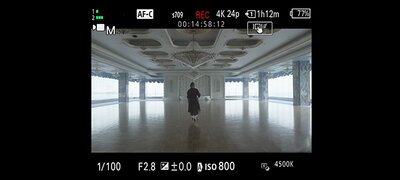

Movie standby screen

The layout of the information and icon overlay that appears in standby mode has been optimized for movie recording so you can concentrate more fully on composition and framing. Only the most essential items are displayed in the black bands above and below the image area.

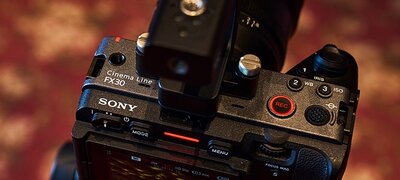

Tally lamps

Recording (tally) lamps are provided on the upper front and rear of the camera. The REC button on the top of the camera is also illuminated and linked to the rear recording lamp. To make it clear when the camera is in record mode, a red frame appears on the monitor display so that the operator can easily confirm that recording is in progress.

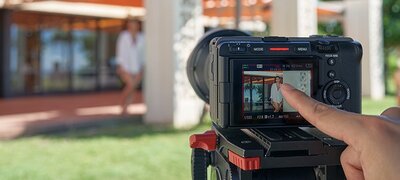

Flexible, high-resolution touch-panel LCD monitor

The FX30 features a side-opening vari-angle rear monitor that allows broad positioning and framing freedom for gimbal-mounted shots, handheld shots, very low ground-level shots, or whatever the shoot requires. The large 3.0 type 2.36 million-dot touch-panel LCD monitor provides clear viewing in bright outdoor settings. The function (Fn) menu can be displayed by swiping up on the monitor, for quick access to frequently used assigned functions.

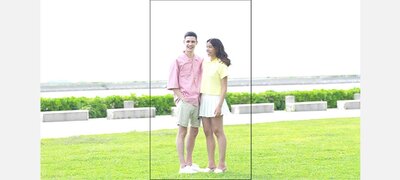

Vertical aspect markers

With the proliferation of smartphones and social media, creators are producing imagery with a variety of aspect ratios and orientations, with vertical orientation becoming more common. The FX30 offers a number of aspect markers that can be used to check framing while shooting in standard horizontal orientation. Aspect markers that are useful when shooting social media ads and vertical movies are included.

XLR connectors for high-quality external audio input

The XLR handle unit provides two XLR audio inputs to facilitate high-quality audio recording. With an optional XLR microphone, digital audio data can be transferred directly to the camera for outstanding audio quality without noise or signal degradation. There is also a 3.5 mm stereo mini jack for 4-channel recording, for compatibility with 2-channel and 4-channel audio formats.

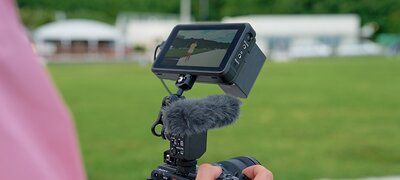

Broad connectivity for a wide range of shooting needs

An HDMI Type-A connector can be used to feed 4K, 16-bit RAW, or other movie formats to an external recorder or display device, with the option of status overlays included in the HDMI output. Other connectors include USB Type-C® , Multi/Micro-USB, mic, headphone, and a Multi Interface (MI) Shoe with built-in digital audio interface. The FX30 also supports UVC (USB Video Class) and UAC (USB Audio Class) standards and can serve as a high-performance streaming camera or webcam.

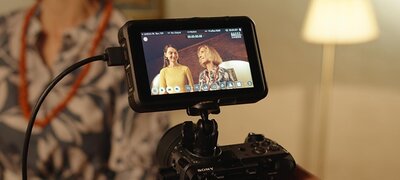

16-bit RAW output via HDMI

For demanding post-production workflows, 16-bit RAW output is available over an HDMI connection to compatible external recorders. XAVC HS 4K, XAVC S 4K or XAVC S-I 4K, and proxy files are simultaneously captured in-camera. RAW video output is 4672 x 2628 [16:9] resolution, exceeding DCI-4K resolution.

Time code sync

The FX30 can be synchronized (TC-IN) to a second camera that has a time code output terminal by connecting the FX30's Multi/Micro USB terminal to the time code source via an optional VMC-BNCM1 adaptor and standard BNC cable.

Two CFexpress Type A compatible media slots

The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bitrates. Dual slots enable either relay or simultaneous recording.

Uninterrupted 4K 60p recording

For uninterrupted 4K 60p recording, the FX30 features an innovative heat dissipation structure, including a unique Sony Σ (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimized the camera's airflow and heatsink placement. When required, a silent cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.

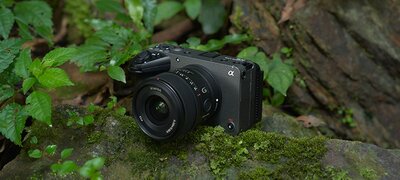

Designed to resist dust and moisture

Dust- and moisture-resistance refinements have been implemented everywhere in the FX30. Sealing is provided throughout the body as well as on the battery compartment cover, and the media slot has a double sliding cover and lock lever to keep water out. Cooling airflow, from inlet to exhaust, is completely isolated from the interior. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.

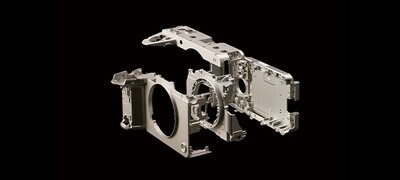

Sturdy magnesium alloy body

The camera's body and covers are constructed from a lightweight magnesium alloy to enhance durability and performance even in challenging environments.

Imaging Edge Mobile

Imaging Edge Mobile provides support for remote control from smartphones and tablets. It can also remotely control Touch Tracking and Touch Focus for convenient AF operation, and transfer captured still and movie files.

Environmentally conscious without compromising performance

The Sony Group continues to accelerate our "Road to Zero" environmental plan, aiming to achieve zero environmental footprint by 2040. Measures have been taken to reduce the environmental footprint of this product at every stage of its life cycle. These include using recycled materials in production; managing environmental impact throughout the supply chain; using renewable energy in production; and using recyclable non-plastic packaging materials.

Overall:

(43 reviews)

Read More Reviews

General
CAMERA TYPE Interchangeable lens digital camera
LENS MOUNT E-mount
Size & Weight
WEIGHT (MAIN UNIT ONLY) (approx.) 1 lb 6.8 oz (646 g) (with battery and memory card included), 1 lb 3.8 oz (562 g) (body only)
DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.) 5.11 x 3.06 x 3.33 inches (129.7 mm x 77.8 mm x 84.5 mm) (body without protrusions)
Power
POWER CONSUMPTION [Movie] Approx. 5.6 W (with E PZ 18–105 mm F4 OSS lens attached), [Still image] Approx. 3.5 W (with E PZ 18–105 mm F4 OSS lens attached)
BATTERY OPERATING TIME Approx. 115 min (Actual recording, CIPA standard)1, Approx. 175 min (Continuous recording, CIPA standard), Approx. 570 shots (still images, CIPA standard)
Operation
OPERATING TEMPERATURE 32 °F to 104 °F (0 °C to 40 °C)
STORAGE TEMPERATURE –4 °F to +131 °F, –20 °C to +55 °C
Recording Format (Video)
XAVC HS [XAVC HS 4K] XAVC HS 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 150 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p/23.98p 100 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 75 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 45Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 100 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 30 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 280 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 200 Mbps 4:2:0 10bit MPEG-H HEVC / H.265
XAVC S [XAVC S 4K] XAVC S 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 59.94p/50p 150 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p 140 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 23.98p 100 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 280 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 200 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p 25 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC HD 29.97p/25p 16 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264,
XAVC S-I [XAVC S-I 4K] XAVC S-I 4K 59.94p 600 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 29.97p 300 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 23.98p 240 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59.94p 222 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 29.97p 111 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 23.98p 89 Mbps 4:2:2 10bit MPEG-4 AVC / H.264,
[XAVC S-I DCI 4K] XAVC S-I DCI 4K 59.94p 600 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 50p 500 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 29.97p 300 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 25p 250 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 23.98p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 24.00p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264
Recording Format (Audio)
RECORDING FORMAT (AUDIO) LPCM 2ch (48 kHz 16 bit), LPCM 2ch (48 kHz 24 bit), LPCM 4ch (48 kHz 24 bit)2, MPEG-4 AAC-LC 2ch2
Recording Frame Rate
XAVC HS [XAVC HS 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 23.98p
XAVC S [XAVC S 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p
XAVC S-I [XAVC S-I 4K] 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p,
[XAVC S-I DCI 4K] 4096 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 24.00p
Recording/ Playback Time
XAVC HS [XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80 GB) Approx. 50 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 150 minutes, When using CEA-G80T (80 GB) Approx. 75 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 190 minutes, When using CEA-G80T (80 GB) Approx. 95 minutes, 59.94p/50p 45M When using CEA-G160T (160 GB) Approx. 290 minutes, When using CEA-G80T (80 GB) Approx. 140 minutes
XAVC S [XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80GB) Approx. 50 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 270 minutes, When using CEA-G80T (80 GB) Approx. 130 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 430 minutes, When using CEA-G80T (80 GB) Approx. 210 minutes
XAVC S-I [XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80 GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80 GB) Approx. 35 minutes
PROXY AUDIO [XAVC S-I DCI 4K] 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80 GB) Approx. 10 minutes
XAVC Proxy: AAC-LC, 128 kbps, 2 channels
PROXY VIDEO 1280 x 720 (Approx. 6 Mbps), 1920 x 1080 (Approx. 9 Mbps), 1920 x 1080 (Approx. 16 Mbps)
RAW Output
RAW Output HDMI: 4672 x 2628 (59.94p/50p/29.97p/25p/23.98p), 16 bit
Other Video Function
VIDEO FUNCTIONS Audio Level Display, Audio Rec Level, TC/UB, Creative Look, Gamma Display Assist, PAL/NTSC Selector
Camera Section
SENSOR TYPE APS-C type (23.3 x 15.5 mm), Exmor R CMOS sensor
Pixels Approx. 20.1 megapixels (effective) for movies, Approx. 26.0 megapixels (effective) for Still images, Approx. 27.0 megapixels (total)
SENSITIVITY [Movie] ISO 100–32000 equivalent, AUTO (ISO 100–6400, selectable lower limit and upper limit)3, [Still image] ISO 100–32000 (Expandable to ISO 50–102400), AUTO (ISO 100–6400, selectable lower limit and upper limit)3
SHUTTER SPEED [Movie] 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode), [Still image] 1/8000 to 30 s
Slow & Quick Motion
XAVC HS XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps4, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps4
XAVC S XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps4, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps4, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps5, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps5
XAVC S-I XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps4, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps[NF_39], XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps5, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps5
White Balance
WHITE-BALANCE MODES Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Underwater / Color Temperature (2,500 to 9,900K) & color filter / Custom
Gamma
GAMMA CURVE Off / PP1-PP6 / PP10-PP11, Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, ITU709 [800%], S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset
Latitude
LATITUDE 14+ stop (S-Log3)
Focus System
Type Fast Hybrid AF (phase-detection AF / contrast-detection AF)
FOCUS POINT [Movie] 495 points (phase-detection AF), [Still image] 759 points (phase-detection AF)
SENSITIVITY RANGE EV-3 to EV 20 (ISO 100 equivalent with F2.0 lens attached)
FOCUS MODE [Movie] AF-C (Continuous AF), MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus
FOCUS AREA [Movie] Wide / Zone / Center Fix / Spot / Expand Spot [Still image] Wide / Zone / Center Fix / Spot / Expand Spot / Tracking
OTHER FOCUS FEATURES Eye AF ([Movie] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird), ([Still images] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird), Face detection (Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still image] Focus Magnifier (APS-C: 6.1x / 12.1x)
Exposure Control
METERING SENSITIVITY EV -3 to EV 20 (at ISO100 equivalent with F2.0 lens attached)
EXPOSURE MODES [Movie] [Movie] Programmed AE (P) / Aperture priority (A) / Shutter priority (S) / Manual Exposure (M) / Flexible Exp. Mode, [Still images] Intelligent Auto (Auto) / Program Auto (P) / Aperture priority (A) / Shutter priority (S) / Manual Exposure (M)
Recording (Still image)
RECORDING FORMAT JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant)
IMAGE SIZE Image size [3:2] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [4:3] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [16:9] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [1:1] L: 4128 x 4128 (17M), M: 2912 x 2912 (8.5M), S: 2064 x 2064 (4.3M)
Playback
PLAYBACK FUNCTIONS Index view, Folder selection (Date / Still / Movie), Photo capture, 4ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)
Interface
TC INPUT/TC OUTPUT Multi/Micro USB, TC IN
AUDIO INPUT 0.14 " Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin (female) (x2), line/mic/mic +48 V selectable, Mic Reference –40 to –60 dBu / [INPUT3] 0.14 " Stereo minijack)
USB USB Type-C® (x1, SuperSpeed USB 10 Gbps (USB 3.2) compatible), Multi/Micro USB (x1)
HEADPHONE OUTPUT Yes (3.5 mm Stereo minijack)
SPEAKER OUTPUT Built-in, monaural
HDMI OUTPUT HDMI jack (Type-A), YCbCr 4:2:2 10 bit / RGB 8 bit
MULTI INTERFACE SHOE With Digital Audio Interface
Bluetooth® Bluetooth Standard Ver. 5.0 (2.4 GHz band)
Media
MEDIA TYPE CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy
Monitoring
LCD 3.0-type (7.5 cm), Approx. 2.36M dots, touch panel, Opening Angle: Approx. 176 deg., Rotation Angle: Approx. 270 deg.
Built-in Microphone
BUILT-IN MICROPHONE Built-in, stereo
File System
FILE SYSTEM FAT12, 16, 32, exFAT
Zoom
ZOOM FUNCTION Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] L: Approx. 2x, M: Approx. 2.8x, S: Approx. 4x), Digital zoom ([Movie] Approx. 4x [Still image] L: Approx 4x, M: Approx. 5.7x, S: Approx. 8x), Smart zoom ([Still image] M: Approx. 1.4x, S: Approx. 2x)
Still image function
SHUTTER Electronic shutter
DRIVE MODES Single Shooting, Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket
NOISE REDUCTION High ISO NR: Normal / Low / Off
OTHER STILL IMAGE FUNCTION Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot6
Image Stabilization
Type Image Sensor-Shift mechanism with 5-axis compensation (compensation depends on lens specifications)
MODE [Movie] Active / Standard / Off, [Still image] On / Off
COMPENSATION EFFECT (STILL IMAGES) 5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50 mm F1.4 ZA lens mounted.)
Custom Function
CUSTOM FUNCTION Custom key settings, My Menu, My Dial Settings, Reg. Custom Shoot Set
Lens Compensation
LENS COMPENSATION Peripheral Shading, Chromatic Aberration, Distortion, Breathing (Movie)
Wi-Fi/NFC
SUPPORTED FORMAT IEEE 802.11a/b/g/n/ac
FREQUENCY BAND 2.4 GHz band/5 GHz bandwidth7
SECURITY WEP/WPA-PSK/WPA2-PSK
FTP Transfer
FTP Transfer Wired LAN (USB-LAN), USB Tethering, Wi-Fi
Supplied Accessories
SUPPLIED ACCESSORIES Rechargeable Battery NP-FZ100
AC adapter
Body cap
Accessory shoe cap
USB-A to USB-C cable (USB 3.2)
