| Lens | |
|---|---|

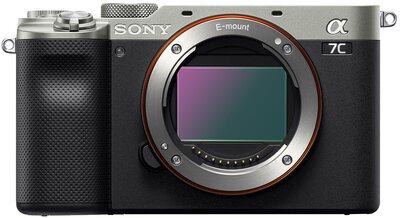

| Lens Mount | E-mount |
| Image Sensor | |
| Aspect Ratio | 3 : 2 |
| Number Of Pixels (Effective) | Approx. 24.2 megapixels |
| Number of Pixels (total) | Approx. 25.3 megapixels |

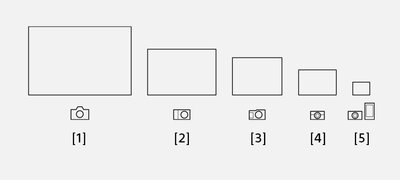

| Sensor Type | 35-mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor |
| Anti-Dust System | Yes (charge protection coating on optical filter, and image sensor shift mechanism) |
| Recording (still images) | |
| IMAGE SIZE (PIXELS) [4:3] | 35-mm full frame L: 5328 x 4000 (21 M), M: 3488 x 2624 (9.2 M), S: 2656 x 2000 (5.3 M), APS-C L: 3488 x 2624 (9.2 M), M: 2656 x 2000 (5.3 M), S: 1744 x 1312 (2.3 M) |
| Image Size (pixels) [16:9] | 35-mm full frame L: 6000 x 3376 (20 M), M: 3936 x 2216 (8.7 M), S: 3008 x 1688 (5.1 M), APS-C L: 3936 x 2216 (8.7 M), M: 3008 x 1688 (5.1 M), S: 1968 x 1112 (2.2 M) |
| IMAGE SIZE (PIXELS) [1:1] | 35-mm full frame L: 4000 x 4000 (16 M), M: 2624 x 2624 (6.9 M), S: 2000 x 2000 (4.0 M), APS-C L: 2624 x 2624 (6.9 M), M: 2000 x 2000 (4.0 M), S: 1312 x 1312 (1.7 M) |
| 14bit RAW | Yes |
| Picture Effect | Eight types: Toy Camera (Normal/Cool/Warm/Green/Magenta), Pop Color, Posterization (Color, B/W), Retro Photo, Soft High-key, Partial Color (R/G/B/Y), High-Contrast Monochrome, Rich-tone Monochrome |
| Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style Box (1-6) |
| Picture Profile | Yes (Off/PP1-PP10) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset |
| CREATIVE LOOK | - |
| Dynamic Range Functions | Off, Dynamic Range Optimizer, Auto High Dynamic Range |
| Color Space | sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINoS Color |
| Recording system (Still Image) | |
| Recording Format | JPEG (DCF Ver. 2.0, Exif Ver.2.32, MPF Baseline compliant), RAW (Sony ARW 2.3 format) |
| Image Size (pixels) [3:2] | 35-mm full frame L: 6000 x 4000 (24 M), M: 3936 x 2624 (10 M), S: 3008 x 2000 (6.0 M), APS-C L: 3936 x 2624 (10 M), M: 3008 x 2000 (6.0 M), S: 1968 x 1312 (2.6 M) |
| Image Quality Modes | RAW (Compressed/Uncompressed), JPEG (Extra fine/Fine/Standard), RAW & JPEG |
| Recording (movie) | |
| Recording Format | XAVC S |
| Color Space | xvYCC standard (x.v.Color when connected via HDMI cable) compatible with TRILUMINoS Color |
| Picture Effect | Seven types: Toy Camera (Normal/Cool/Warm/Green/Magenta), Pop Color, Posterization (Color, B/W), Retro Photo, Soft High-key, Partial Color (R/G/B/Y), High-Contrast Monochrome |
| Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style Box (1-6) |
| Picture Profile | Yes (Off/PP1-PP10) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset |
| CREATIVE LOOK | - |

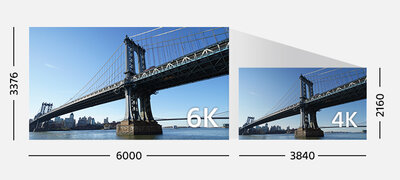

| MOVIE RECORDING SYSTEM (XAVC S 4K) | 3840 x 2160 (4:2:0, 8 bit, NTSC) (Approx.) 30p (100 Mbps/60 Mbps), 3840 x 2160 (4:2:0, 8 bit, NTSC) (Approx.) 24p (100 Mbps/60 Mbps), 3840 x 2160 (4:2:0, 8 bit, PAL) (Approx.) 25p (100 Mbps/60 Mbps) |
| MOVIE RECORDING SYSTEM (XAVC S HD) | 1920 x 1080 (4:2:0, 8 bit, NTSC) (Approx.) 120p (100 Mbps/60 Mbps), 1920 x 1080 (4:2:0, 8 bit, NTSC) (Approx.) 60p (50 Mbps/25 Mbps), 1920 x 1080 (4:2:0, 8 bit, NTSC) (Approx.) 30p (50 Mbps/16 Mbps), 1920 x 1080 (4:2:0, 8 bit, NTSC) (Approx.) 24p (50 Mbps), 1920 x 1080 (4:2:0, 8 bit, PAL) (Approx.) 100p (100 Mbps/60 Mbps), 1920 x 1080 (4:2:0, 8 bit, PAL) (Approx.) 50p (50 Mbps/25 Mbps), 1920 x 1080 (4:2:0, 8 bit, PAL) (Approx.) 25p (50 Mbps/16 Mbps) |
| Slow & quick motion (shooting frame rate) | NTSC mode: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps,PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps |
| Movie Functions | Audio Level Display, Audio Rec Level, PAL/NTSC Selector, TC/UB, Auto Slow Shutter, Gamma Disp. Assist |
| Recording System (movie) | |
| VIDEO COMPRESSION | XAVC S: MPEG-4 AVC/H.264 |
| AUDIO RECORDING FORMAT | XAVC S: LPCM 2ch |
| Recording System | |
| Location information Link from smartphone | Yes |
| Media | SD memory card, SDHC memory card (UHS-I/II compliant), SDXC memory card (UHS-I/II compliant) |
| Memory Card Slot | Slot for SD (UHS-I/II compliant) memory card |
| Recording mode on 2 memory cards | - |
| Noise Reduction | |
| Noise Reduction | Long exposure NR: On/Off, available at shutter speeds longer than 1 s, High ISO NR: Normal/Low/Off |
| White Balance | |
| White Balance Modes | Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom |
| SHUTTER AWB LOCK | Yes (Shut. Halfway Down / Cont. Shooting / Off) |
| Focus | |
| Focus Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
| Focus Sensor | Exmor R® CMOS sensor |

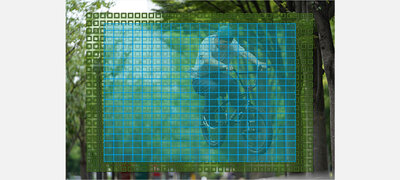

| Focus Point | 35 mm full frame: 693 points (phase-detection AF), APS-C mode with FF lens: 299 points (phase-detection AF), with APS-C lens: 221 points (phase-detection AF) / 425 points (contrast-detection AF) |
| Focus Sensitivity Range | EV-4 to EV20 (ISO 100 equivalent with F2.0 lens attached) |
| Focus Mode | AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus |
| Focus Area | Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot / Tracking |

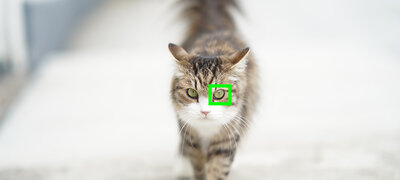

| EYE AF / SUBJECT RECOGNITION AF | [Still images] Human (Right/Left Eye Select) / Animal, [Movie] Human (Right/Left Eye Select) / Animal |
| Other Features | Eye-start AF (only with LA-EA2 or LA-EA4 attached (Sold separately)), AF micro adjustment (with LA-EA2 or LA-EA4 (Sold separately)), Predictive control, Focus lock, AF Track Sens. (Still), AF Subj. Shift Sensitivity (Movie), AF Transition Speed (Movie), Switch V/H AF Area, AF Area Regist., Circ. of Focus Point |
| AF Illuminator | Yes (with built-in LED type) |
| AF Illuminator range | Approx. 0.98 ft – approx. 0.98 ft (with FE 28-70 mm F3.5–5.6 OSS lens attached) |
| Focus type with LA-EA3 (Sold separately) | Phase-detection |
| Exposure | |
| Metering Sensor | Exmor R® CMOS sensor |
| Metering Sensitivity | EV-3 to EV 20 (ISO 100 equivalent with F2.0 lens attached) |
| Metering Mode | Multi-segment, Center-weighted, Spot (Standard/Large), Entire Screen Avg., Highlight |
| Exposure Compensation | +/- 5.0EV (1/3 EV, 1/2 EV steps selectable) (with exposure compensation dial: +/- 3EV [1/3 EV steps]) |
| Exposure Bracketing | Bracket: Cont., Bracket: Single, 3/5/9 frames selectable. (Ambient light, Flash light) |
| AE Lock | Locked when shutter button is pressed halfway. (On/Off/Auto) |
| Exposure Modes | AUTO (iAuto), Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual (M), Movie (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)), Slow & Quick Motion (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)) |
| ISO Sensitivity | Still images: ISO 100–51200 (ISO numbers up from ISO 50 to ISO 204800 can be set as expanded ISO range.), AUTO (ISO 100–12800, selectable lower limit and upper limit), Movies: ISO 100–51200 equivalent (ISO numbers up ISO 102400 can be set as expanded ISO range.), AUTO (ISO 100–12800, selectable lower limit and upper limit) |
| Anti-Flicker Shoot. | Yes |
| Scene Selection | - |
| Metering Type | 1200-zone evaluative metering |
| Viewfinder | |

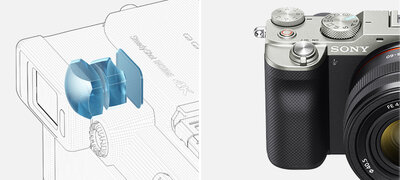

| Viewfinder Type | 0.39-inch (1.0 cm) type electronic viewfinder (XGA OLED) |
| Number of Dots | 2,359,296 dots |
| Field Coverage | 100% |
| Magnification | Approx. 0.59x (with 50-mm lens at infinity, –1 m-1) |
| Diopter Adjustment | -4.0 to +3.0 m-1 |
| Eye Point | Approx. 0.79 inches from the eyepiece lens, 0.69 inches from the eyepiece frame at –1 m-1 (CIPA standard) |
| DISPLAY FUNCTION | Histogram, Real-time image-adjustment display, Digital level gauge, Grid line, Focus check, Peaking MF, Zebra, Movie marker, For viewfinder, Monitor Off |
| Finder Frame Rate Selection | NTSC mode: STD 60fps / HI 120fps, PAL mode: STD 50fps / HI 100fps |
| LCD Screen | |
| Monitor Type | 2.95 inch (3.0-type) wide type TFT |

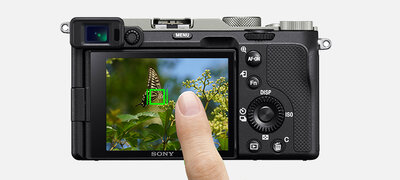

| Touch Panel | Yes (Touch shutter/Touch focus/Touch pad/Touch tracking) |
| Number of Dots | 921,600 dots |
| Brightness Control | Manual (5 steps between -2 and +2), Sunny Weather mode |

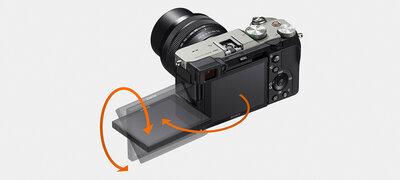

| Adjustable Angle | Opening Angle: Approx. 176 deg., Rotation Angle: Approx. 270 deg. |
| Focus Magnifier | Yes, Focus Magnifier (35-mm full frame: 5.9x / 11.7x, APS-C: 3.8x / 7.7x) |
| Other Features | |
| PlayMemories Camera Apps™ | - |
| Clear Image Zoom | Still images: Approx. 2x, Movies: Approx. 1.5x (4K), Approx. 2x (HD) |
| Digital Zoom | Smart zoom (Still images): 35-mm full frame: M: approx. 1.5x, S: approx. 2x / APS-C: M: approx. 1.3x, S: approx. 2x, Digital zoom (Still images): 35-mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x / APS-C: L: approx. 4x, M: approx. 5.2x, S: approx. 8x, Digital zoom (Movie): 35-mm full frame: approx. 4x, APS-C: approx. 4x |
| Face Detection | Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority |
| Self-Portrait Self-Timer | - |
| Others | Interval Recording, ISO AUTO Min. SS, Bright Monitoring, Copyright Info, Set File Name, Help guide, Video Light Mode, Zoom Ring Rotate |
| Shutter | |
| TYPE | Electronically controlled, vertical-traverse, focal-plane type |
| Shutter Type | Mechanical shutter/Electronic shutter |
| Shutter Speed | Still images: Mechanical Shutter: 1/4000 to 30 s, Bulb, Electronic Shutter: 1/8000 to 30 s, Movies (NTSC mode): 1/4000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode), Movies (PAL mode): 1/4000 to 1/4 (1/3 steps), up to 1/50 in AUTO mode (up to 1/25 in Auto slow shutter mode) |
| Flash Sync. Speed | 1/160 sec.36 |
| Electronic Front Curtain Shutter | Yes |
| Silent Shooting | Yes (ON/OFF) |
| Flash Control | |
| TYPE | - |
| Guide No. | - |
| Flash coverage | - |
| Control | Pre-flash TTL[[F_DI0181]] |
| Flash Compensation | +/- 3.0 EV (switchable between 1/3 and 1/2 EV steps) |
| Flash Modes | Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable), Wireless37, Hi-speed sync.37 |
| Recycling Time | - |

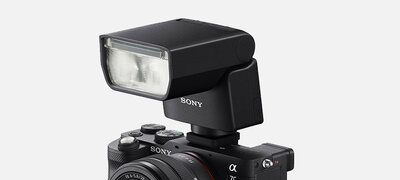

| External Flash Compatibility | Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adapter for flash compatible with Auto-lock accessory shoe |
| FE Level Lock | Yes |
| Wireless Control | Yes (Light signal: Available with Fill-flash, Slow Sync., Hi-speed sync. / Radio signal: Available with Fill-flash, Rear Sync., Slow Sync., Hi-speed sync.) |
| Image Stabilization | |

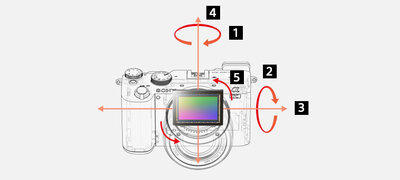

| TYPE | Image Sensor-Shift mechanism with 5-axis compensation (compensation depends on lens specifications) |
| Compensation Effect | Five stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50-mm F1.4 ZA lens mounted. Long exposure NR off.) |
| Drive | |
| Drive Modes | Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket |
| Continuous Drive Speed (approx. max.) | Continuous shooting: Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps38 |
| No. of recordable frames (approx.) | JPEG Extra fine L: over 215 frames38, JPEG Fine L: over 223 frames38, JPEG Standard L: over 223 frames38, RAW: over 115 frames38, RAW & JPEG: over 86 frames38, RAW (Uncompressed): over 45 frames38, RAW (Uncompressed) & JPEG: over 39 frames38 |
| Self-Timer | 10-sec. delay / 5-s delay / 2-s delay / Continuous self-time / Bracketing self-timer |
| Pixel Shift Multi Shooting | - |
| Playback | |
| Photo Capture | Yes |
| Modes | Single (with or without shooting information Y RGB histogram & highlight/shadow warning), Index view, Enlarged display mode (L: 18.8x, M: 12.3x, S: 9.4x), Auto Review, Image orientation, Slideshow, Folder selection (Date / Still / XAVC S HD / XAVC S 4K), Protect, Rating, Display as Group |
| Compatible Standards | Exif Print, Print Image Matching III, DPOF setting |
| Custom Function | |
| Type | Custom key settings, Programmable Setting (Body three sets /memory card four sets), My Dial Settings, My Menu, Reg Cust Shoot Set |
| Lens Compensation | |
| Setting | Peripheral Shading, Chromatic Aberration, Distortion |
| Interface | |
| PC Interface | Mass-storage / MTP |
| Multi/Micro USB Terminal | USB Type-C® SuperSpeed USB 5 Gbps (USB 3.2) compatible |
| Sync terminal | - |
| Bluetooth® | Yes (Bluetooth Standard Ver. 4.1 (2.4 GHz band)) |

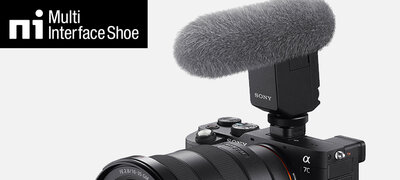

| Multi Interface Shoe | Yes (with Digital Audio Interface)39 |
| Vertical Grip Connector | - |
| Mic Terminal | Yes (3.5 mm Stereo minijack) |
| Headphone Terminal | Yes (3.5 mm Stereo minijack) |
| LAN Terminal | - |
| FUNCTIONS | FTP Transfer Func. (Wi-Fi), View on Smartphone, Remote control via Smartphone, NFC One-touch remote, NFC One-touch sharing, PC Remote, BRAVIA Sync (Control for HDMI), PhotoTV HD |
| Audio | |
| Microphone | Built-in, stereo |
| Speaker | Built-in, monaural |
| Power | |

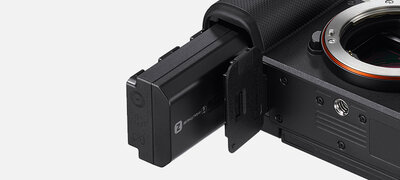

| Supplied Battery | One rechargeable battery pack NP-FZ100 |
| Battery Life (Still Images) | Approx. 680 shots (Viewfinder) / approx. 740 shots (LCD monitor) (CIPA standard)40 |
| Battery Life (Movie, actual recording) | Approx. 140 min. (Viewfinder) / Approx. 140 min. (LCD monitor) (CIPA standard) |
| Battery Life (Movie, continuous recording) | Approx. 220 min. (Viewfinder) / Approx. 215 min. (LCD monitor) (CIPA standard) |
| Internal Battery Charge | Yes |
| Power consumption with Viewfinder | Still images: approx. 2.9 W (with FE 28–60-mm F4–5.6 OSS lens attached), Movies: approx. 4.5 W (with FE 28–60-mm F4–5.6 OSS lens attached) |
| Power consumption with LCD screen | Still images: approx. 2.7 W (with FE 28–60-mm F4–5.6 OSS lens attached), Movies: approx. 4.6 W (with FE 28–60-mm F4–5.6 OSS lens attached) |
| USB Power Supply | Yes |
| Others | |
| Operating Temperature | 32 - 104 degrees F / 0 - 40 degrees C |
| Size & Weight | |

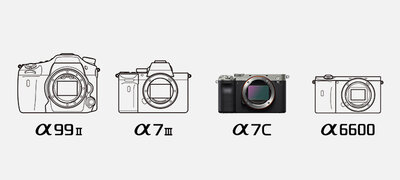

| Weight (with battery and memory card included) | Approx. 1 lb 2.0 oz / Approx. 509 g (Body Only: Approx. 0 lb 15.0 oz / Approx. 424 g) |
| Dimensions (W x H x D) | 4.88 x 2.80 x 2.35 inches, 4.88 x 2.80 x 2.11 inches (FROM GRIP TO MONITOR) / 124.0 mm x 71.1 mm x 59.7 mm, 124.0 mm x 71.1 mm x 53.5 mm (FROM GRIP TO MONITOR) |
