| Lens | |
|---|---|
| Lens Mount | E-mount |
| Image Sensor | |
| Aspect Ratio | 3 : 2 |
| Number Of Pixels (Effective) | Approx. 33.0 megapixels |
| Number of Pixels (total) | Approx. 34.1 megapixels |

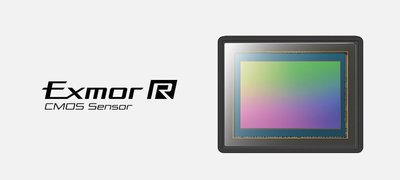

| Sensor Type | 35 mm full frame (35.9 x 23.9 mm), Exmor R CMOS sensor |
| Anti-Dust System | Yes (charge protection coating on optical filter, and image sensor shift mechanism) |
| Recording (still images) | |
| 14bit RAW | Yes |
| Picture Effect | - |
| Creative Style | - |
| Picture Profile | Yes (Off / PP1-PP11) Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset |
| CREATIVE LOOK | ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, Custom Look (1-6) |
| SOFT SKIN EFFECT | Yes |
| Dynamic Range Functions | Off, Dynamic Range Optimizer |
| Color Space | sRGB standard (with sYCC gamut), Adobe RGB standard and Rec. ITU-R BT.2100 standard (BT.2020 gamut).36 |
| Recording system (Still Image) | |
| Recording Format | JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant) |
| Image Quality Modes | RAW (Compressed/Lossless Compressed (L/M/S)/Uncompressed), JPEG (Extra fine/Fine/Standard/Light), HEIF (4:2:0/4:2:2) (Extra fine/Fine/Standard/Light), RAW & JPEG, RAW & HEIF |
| Recording (movie) | |
| Recording Format | XAVC S, XAVC HS |
| Color Space | Rec. ITU-R BT.2100 standard compatible (BT.2020 gamut)37 |
| Picture Effect | - |
| Creative Style | - |
| SOFT SKIN EFFECT | Yes |
| Picture Profile | Yes (Off / PP1-PP11) Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset |
| CREATIVE LOOK | ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, Custom Look (1-6) |
| MOVIE RECORDING SYSTEM (XAVC HS 4K) | 3840 x 2160 (4:2:0, 10 bit, NTSC) (Approx.): 60p (150 Mbps / 75 Mbps / 45 Mbps)38, 39, 24p (100 Mbps / 50 Mbps / 30 Mbps)39, 3840 x 2160 (4:2:0, 10 bit, PAL) (Approx.): 50p (150 Mbps / 75 Mbps / 45 Mbps)38, 3840 x 2160 (4:2:2, 10 bit, NTSC) (Approx.): 60p (200 Mbps / 100 Mbps)38, 39, 24p (100 Mbps / 50 Mbps)39, 3840 x 2160 (4:2:2, 10 bit, PAL) (Approx.): 50p (200 Mbps / 100 Mbps)38 |
| MOVIE RECORDING SYSTEM (XAVC S 4K) | 3840 x 2160 (4:2:0, 8 bit, NTSC) (Approx.): 60p (150 Mbps)38, 39, 30p (100 Mbps / 60 Mbps)39, 24p (100 Mbps / 60 Mbps)39, 3840 x 2160 (4:2:0, 8 bit, PAL) (Approx.): 50p (150 Mbps)38, 25p (100 Mbps / 60 Mbps), 3840 x 2160 (4:2:2, 10 bit, NTSC) (Approx.): 60p (200 Mbps)38, 39, 30p (140 Mbps)39, 24p (100 Mbps)39, 3840 x 2160 (4:2:2, 10 bit, PAL) (Approx.): 50p (200 Mbps)38, 25p (140 Mbps) |
| MOVIE RECORDING SYSTEM (XAVC S HD) | 1920 x 1080 (4:2:0, 8 bit, NTSC) (Approx.): 120p (100 Mbps / 60 Mbps)40, 39, 60p (50 Mbps / 25 Mbps)39, 30p (50 Mbps / 16 Mbps)39, 24p (50 Mbps)39, 1920 x 1080 (4:2:0, 8 bit, PAL) (Approx.): 100p (100 Mbps / 60 Mbps), 50p (50 Mbps / 25 Mbps), 25p (50 Mbps / 16 Mbps), 1920 x 1080 (4:2:2, 10 bit, NTSC) (Approx.): 60p (50 Mbps)39, 30p (50 Mbps)39, 24p (50 Mbps)39, 1920 x 1080 (4:2:2, 10 bit, PAL) (Approx.): 50p (50 Mbps), 25p (50 Mbps) |
| MOVIE RECORDING SYSTEM (XAVC S-I 4K) | 3840 x 2160 (4:2:2, 10 bit, NTSC) (Approx.): 60p (600 Mbps)38, 39, 30p (300 Mbps)39, 24p (240 Mbps)39, 3840 x 2160 (4:2:2, 10 bit, PAL) (Approx.): 50p (500 Mbps)38, 25p (250 Mbps) |
| MOVIE RECORDING SYSTEM (XAVC S-I HD) | 1920 x 1080 (4:2:2, 10 bit, NTSC) (Approx.): 60p (222 Mbps)39, 30p (111 Mbps)39, 24p (89 Mbps)39, 1920 x 1080 (4:2:2, 10 bit, PAL) (Approx.): 50p (185 Mbps), 25p (93 Mbps) |
| Slow & quick motion (shooting frame rate) | NTSC mode: 1 fps, 2 fps, 4 fps, 8 fps, 15 fps, 30 fps, 60 fps, 120 fps41, 40, PAL mode: 1 fps, 2 fps, 3 fps, 6 fps, 12 fps, 25 fps, 50 fps, 100 fps41, 40 |
| Movie Functions | Audio Level Display, Audio Rec Level, PAL/NTSC Selector, Proxy Recording (1280 x 720 [Approx. 6 Mbps], 1920 x 1080 [Approx. 9 Mbps], 1920 x 1080 [Approx. 16 Mbps]), TC/UB, Auto Slow Shutter, Gamma Disp. Assist |
| Recording system (Movie) | |
| VIDEO COMPRESSION | XAVC S: MPEG-4 AVC/H.264, XAVC HS: MPEG-H HEVC/H.265 |
| AUDIO RECORDING FORMAT | LPCM 2 ch (48 kHz 16 bit), LPCM 2 ch (48 kHz 24 bit)42, LPCM 4 ch (48 kHz 24 bit)42, MPEG-4 AAC-LC 2 ch43 |

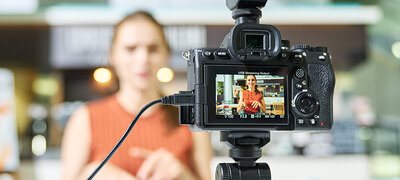

| USB Streaming | |
| VIDEO DATA FORMAT | MJPEG, YUV42044 |
| VIDEO RESOLUTION | 3840 x 2160 (15p / 12.5p) / 1920 x 1080 (60p / 50p / 30p / 25p) / 1280 x 720 (30p / 25p) |
| AUDIO DATA FORMAT | LPCM 2 ch (16 bit 48 kHz) |
| SIMULTANEOUS INTERNAL RECORDING | Yes |
| Recording System | |
| Location information Link from smartphone | Yes |
| Media | SD memory card, SDHC memory card (UHS-I/II-compliant), SDXC memory card (UHS-I/II-compliant), CFexpress Type A memory card |

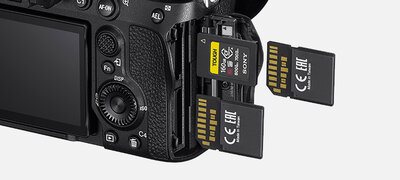

| Memory Card Slot | SLOT1: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card, SLOT2: Slot for SD (UHS-I/II compliant) memory card |
| Recording mode on 2 memory cards | Simult. Rec, Sort, Auto Switch Media, Copy |
| Noise Reduction | |
| Noise Reduction | Long exposure NR: On/Off, available at shutter speeds longer than 1 s, High ISO NR: Normal / Low / Off |
| White Balance | |
| White Balance Modes | Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2,500 to 9,900 K) & color filter / Custom |
| SHUTTER AWB LOCK | Yes (Shut. Halfway Down / Cont. Shooting / Off) |
| Focus | |

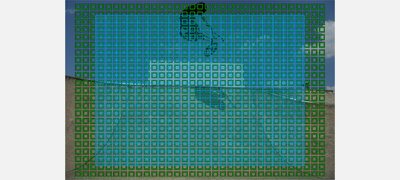

| Focus Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
| Focus Sensor | Exmor R® CMOS sensor |
| Focus Point | 35 mm full frame: 759 points (phase-detection AF), APS-C mode with FF lens: 713 points (phase-detection AF), with APS-C lens: 575 points (phase-detection AF) / 425 points (contrast-detection AF) |
| Focus Sensitivity Range | EV-4 to EV20 (ISO 100 equivalent with F2.0 lens attached) |
| Focus Mode | AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus |
| Focus Area | Wide / Zone / Center Fix / Spot / Expand Spot / Tracking |
| EYE AF / SUBJECT RECOGNITION AF | [Still images] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird, [Movie] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird |
| Other Features | Predictive control, Focus lock, AF Track Sens. (Still), AF Subj. Shift Sensitivity (Movie), AF Transition Speed (Movie), Switch V/H AF Area, AF Area Regist., Circ. of Focus Point, Focus Map (Movie), AF Assist (Movie) |
| AF Illuminator | Yes (with built-in LED type) |
| AF Illuminator range | Approx. 0.3 m–approx. 3.0 m (with FE 28–70 mm F3.5-5.6 OSS lens attached) |
| Focus type with LA-EA3 (Sold separately) | Phase-detection |
| Exposure | |
| Metering Sensor | Exmor R® CMOS sensor |
| Metering Sensitivity | EV -3 to EV 20 (at ISO100 equivalent with F2.0 lens attached) |
| Metering Mode | Multi-segment, Center-weighted, Spot (Standard/Large), Entire Screen Avg., Highlight |
| Exposure Compensation | +/- 5.0 EV (1/3 EV, 1/2 EV steps selectable) |
| Exposure Bracketing | Bracket: Cont., Bracket: Single, 3/5/9 frames selectable. (Ambient light, Flash light) |
| AE Lock | Locked when shutter button is pressed halfway. Available with AE lock button. (On/Off/Auto) |
| Exposure Modes | [Still images] Intelligent Auto (Auto) / Program Auto (P) / Aperture Priority (A) / Shutter Priority (S) / Manual Exposure (M), [Movie] Intelligent Auto (Auto) / Program Auto (P) / Aperture Priority (A) / Shutter Priority (S) / Manual Exposure (M) / Flexible Exp. Mode, [Slow & Quick Motion] Intelligent Auto (Auto) / Program Auto (P) / Aperture Priority (A) / Shutter Priority (S) / Manual Exposure (M) / Flexible Exp. Mode |
| ISO Sensitivity | Still images: ISO 100-51200 (ISO numbers from 50 to 204800 can be set as expanded ISO), AUTO (ISO 100-12800, selectable lower limit and upper limit), Movies: ISO 100-51200 equivalent (ISO numbers up to 102400 can be set as expanded ISO), AUTO (ISO 100-12800, selectable lower limit and upper limit) |
| Anti-Flicker Shoot. | Yes |
| Scene Selection | - |
| Metering Type | 1200-zone evaluative metering |
| Viewfinder | |
| Viewfinder Type | 1.3 cm (0.5 type) electronic viewfinder (Quad-VGA OLED) |
| Number of Dots | 3 686 400 dots |
| Field Coverage | 100% |
| Magnification | Approx. 0.78x (with 50 mm lens at infinity, –1 m-1) |
| Diopter Adjustment | –4.0 to +3.0 m-1 |
| Eye Point | Approx. 23 mm from the eyepiece lens, 18.5 mm from the eyepiece frame at –1 m-1 (CIPA standard) |
| DISPLAY FUNCTION | Histogram, Real-time image-adjustment display, Digital level gauge, Grid line, Focus check, Peaking MF, Zebra, Movie marker, Emphasized display during REC |
| Finder Frame Rate Selection | STD 60 fps / HI 120 fps |
| LCD Screen | |
| Monitor Type | 2.95 inch (3.0-type) wide type TFT |

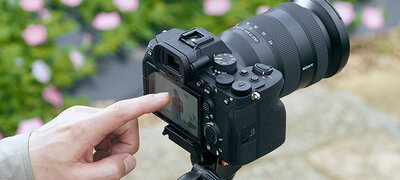

| Touch Panel | Yes |
| Number of Dots | 1 036 800 dots |
| Brightness Control | Manual (5 steps between -2 and +2), Sunny Weather mode |

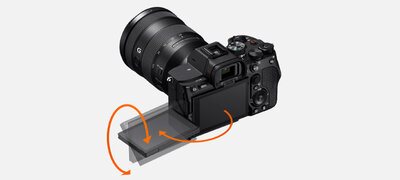

| Adjustable Angle | Opening Angle: Approx. 176°., Rotation Angle: Approx. 270°. |
| Focus Magnifier | Yes, Focus Magnifier (35 mm full frame: 5.5x / 11.0x, APS-C: 3.7x / 7.3x) |
| Other Features | |
| PlayMemories Camera Apps™ | - |
| Clear Image Zoom | Still images: Approx. 2x, Movies: Approx. 1.5x (4K), Approx. 2x (HD) |
| Face Detection | Modes: Face/Eye Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority |
| Self-Portrait Self-Timer | - |
| Others | - |
| Shutter | |
| TYPE | Electronically controlled, vertical-traverse, focal-plane type |
| Shutter Type | Mechanical shutter/Electronic shutter |
| Shutter Speed | Still images: 1/8000 to 30 s, Bulb, Movies (NTSC mode): 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode), Movies (PAL mode): 1/8000 to 1/4 (1/3 steps), up to 1/50 in AUTO mode (up to 1/25 in Auto slow shutter mode) |
| Flash Sync. Speed | 1/250 s (35 mm full frame), 1/320 s (APS-C)45 |
| Electronic Front Curtain Shutter | Yes (ON/OFF) |
| Silent Shooting | Yes (ON/OFF) |
| Flash Control | |
| Control | Pre-flash TTL46 |
| Flash Compensation | +/- 3.0 EV (switchable between 1/3 and 1/2 EV steps) |
| Flash Modes | Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable), Wireless47, Hi-speed sync.47 |
| Recycling Time | - |
| External Flash Compatibility | Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adapter for flash compatible with Auto-lock accessory shoe |
| FE Level Lock | Yes |
| Wireless Control | Yes (Light signal: Available with Fill-flash, Slow Sync., Hi-speed sync. / Radio signal: Available with Fill-flash, Rear Sync., Slow Sync., Hi-speed sync.) |
| Image Stabilization | |
| TYPE | Image Sensor-Shift mechanism with 5-axis compensation (compensation depends on lens specifications) |
| Compensation Effect | 5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50 mm F1.4 ZA lens mounted. Long exposure NR off.) |
| Drive | |
| Drive Modes | Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket |
| Continuous Drive Speed (approx. max.) | Continuous shooting: Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps48 |
| No. of recordable frames (approx.) | JPEG Extra fine L: over 1,000 frames, JPEG Fine L: over 1,000 frames, JPEG Standard L: over 1,000 frames, RAW: over 1,000 frames, RAW & JPEG: over 1,000 frames, RAW (Lossless Compressed): over 1,000 frames, RAW (Lossless Compressed) & JPEG: over 1,000 frames, RAW (Uncompressed): over 1,000 frames, RAW (Uncompressed) & JPEG: 828 frames48 |
| Self-Timer | 10 s delay / 5 s delay / 2 s delay / Continuous self-time / Bracketing self-timer |
| Pixel Shift Multi Shooting | - |
| Playback | |
| Photo Capture | Yes |
| Compatible Standards | Exif Print, Print Image Matching III |
| Custom function | |
| Type | Custom key settings, My Menu, My Dial Settings, Reg Cust Shoot Set, Programmable Setting (Body 9 sets / memory card 12 sets) |
| Lens Compensation | |
| Setting | Peripheral Shading, Chromatic Aberration, Distortion, Breathing (Movie) |
| Accessibility | |
| SCREENREADER | Yes (Language: English, Speed: 7 steps, Volume: 16 steps)49 |
| Interface | |
| PC Interface | Mass-storage / MTP |
| Multi/Micro USB Terminal | Yes50 |
| Sync terminal | - |
| Bluetooth® | Yes (Bluetooth Standard Ver. 4.1 (2.4 GHz band)) |
| Multi Interface Shoe | Yes (with Digital Audio Interface)51 |
| Vertical Grip Connector | Yes |
| Mic Terminal | Yes (3.5 mm Stereo minijack) |
| Headphone Terminal | Yes (3.5 mm Stereo minijack) |
| LAN Terminal | - |
| FUNCTIONS | FTP Transfer Func. (Wired LAN [USB-LAN], USB Tethering, Wi-Fi), View on Smartphone, Remote control via Smartphone, PC Remote, BRAVIA Sync (Control for HDMI), PhotoTV HD |
| Audio | |
| Microphone | Built-in, stereo |
| Speaker | Built-in, monaural |
| Power | |

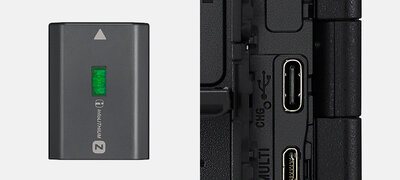

| Supplied Battery | One rechargeable battery pack NP-FZ100 |
| Internal Battery Charge | Yes (Available with USB Type-C Terminal. USB Power Delivery-compatible) |
| USB Power Supply | Yes (Available with USB Type-C Terminal. USB Power Delivery-compatible) |
| Size & Weight | |
| Weight (with battery and memory card included) | Approx. 1 lb 7.3 oz (approx. 658 g) |
| Dimensions (W x H x D) | Approx. 5.25 x 3.88 x 3.25", approx. 5.25 x 3.88 x 2.75" (From grip to monitor) (approx. 131.3 mm x 96.4 mm x 79.8 mm, approx. 131.3 mm x 96.4 mm x 69.7 mm [From grip to monitor]) |
| Others | |
| Operating Temperature | 32–104 °F (0–40 ℃) |
All pictures and graphics are for illustration purposes only. Actual specifications may vary.
Precise figures for the frame rates indicated on this page are as follows: 24p: 23.98 fps, 30p: 29.97 fps, 60p: 59.94 fps, and 120p: 119.88 fps.
