Sensor | |
---|---|

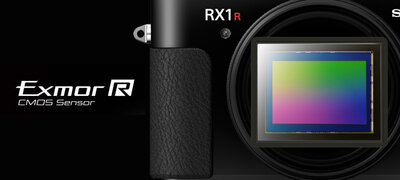

Sensor Type | 35 mm full frame (35.9 x 24.0 mm), Exmor R® CMOS sensor, aspect ratio 3:2 |
Number of Pixels (Effective) | Approx. 42.4 MP |
Number of Pixels (total) | Approx. 43.6 MP |
Number of Pixels (Gross) | Approx. 43.6 MP |
Lens | |

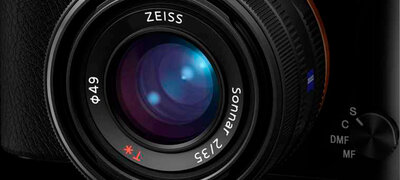

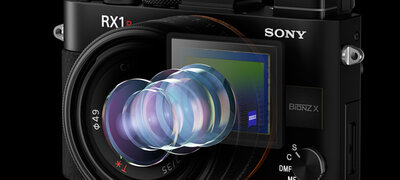

Lens type | ZEISS® Sonnar T*, 8 elements in 7 groups (3 aspherical elements including AA lens) |
F-number (Maximum Aperture) | F2 |
Focal length (f=) | f=35mm |
ANGLE OF VIEW (35 MM FORMAT EQUIVALENT) | 63deg. (35mm12)13 |

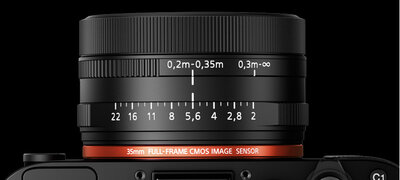

Focus Range (From the Front of the Lens) | Approx. 24 cm to infinity (Normal mode), approx. 14 cm to 29 cm (Macro mode) |
Clear Image Zoom (Still Image) | [Still Image] 2x, [Movie] 2x |
Digital Zoom (Still Image) | Up to 8x |
Filter Diameter | 49 mm |
Max. Magnification (Standard/Macro) | 0.15x/0.26x (By Macro Switching Ring) |

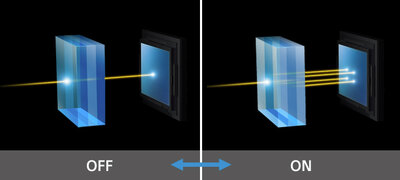

Optical Variable Low-Pass Filter | Yes |
Aperture Type | Iris diaphragm (9 blades) |
Digital Zoom | [Still Image] 42M approx. 4x/18M approx. 6.2x/11M approx. 8x, [Movie] Approx. 4x |
Focus Range (From the Focal Plane) | Approx. 30 cm to infinity (Normal mode), approx. 20 cm to 35 cm (Macro mode) |
Screen | |
Screen Type | 2.95" (3.0 type) (4:3) / 1,228,800 dots / Xtra Fine / TFT LCD |
Brightness Control | Auto/Manual (5 steps)/Sunny Weather mode |

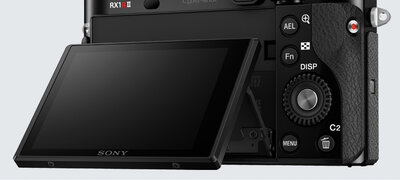

Adjustable Angle | Up approx. 109 degrees, down approx. 41 degrees, at max. |
Display Selector (Finder/Lcd) | Auto / EVF / Monitor |
MS Assist Magnification | 5.0x, 12.5x |
Viewfinder | |

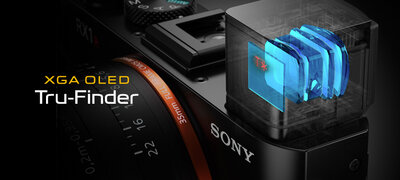

Screen Type/Number of Dots | 0.39-type electronic viewfinder (OLED), 2,359,296 dots |
Field Coverage | 100% |
Magnification | Approx. 0.74x (with 50 mm lens equiv. at infinity, -1m-1) |
Eye Point | Approx. 19 mm from the eyepiece lens, 18.4 mm from the eyepiece frame at -1m-1 (CIPA standard) |
Diopter Adjustment | -4.0 to +3.0m-1 |
Viewfinder | 0.39-type electronic viewfinder (OLED) |
Brightness Control | Auto, Manual (5 steps) |
Camera | |

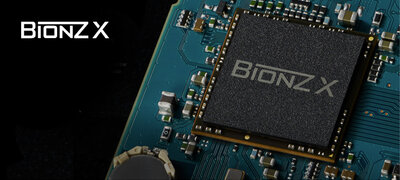

Image Processing Engine | BIONZ X™ |
STEADYSHOT (STILL IMAGE) | Electronic type (for movies) |

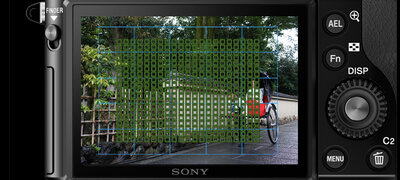

Focus Type | Fast Hybrid AF (phase-detection AF/contrast-detection AF) |
Focus Mode | Single-shot AF (AF-S) / Continuous AF (AF-C) / Direct Manual Focus (DMF) / Manual Focus |
Focus Area | Wide (399 points for phase-detection AF/25 points for contrast-detection AF) / Center / Flexible Spot (S/M/L) / Expand Flexible Spot / Lock-on AF (Wide / Center / Flexible Spot [S/M/L] / Expand Flexible Spot) |
Light Metering Mode | Multi Pattern / Center-Weighted / Spot |
Exposure Compensation | +/-5.0 EV (in 1/3 EV steps), with exposure compensation dial: +/-3.0 EV (in 1/3 EV steps) |
ISO Sensitivity (Still Image)(Recommended Exposure Index) | ISO 100-25600 (1/3 EV step) (expandable to ISO 50/64/80/32000/40000/51200/64000/80000/102400), AUTO (ISO 100-102400, selectable upper/lower limit), Multi-Frame NR: ISO 100-102400 (1 EV step), AUTO (ISO 100-102400, selectable upper/lower limit)14 |
ISO Sensitivity (Movie) | ISO 100-25600 |
White Balance Modes | Auto / Daylight / Shade / Cloudy / Incandescent / Fluor.: Warm White / Fluor.: Cool White / Fluor.: Day White / Fluor.: Daylight / Flash / C.Temp. / Filter / Custom |

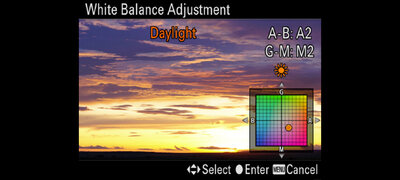

WB Micro Adjustment | Yes (G7 to M7 [57 steps], A7 to B7 [29 steps]) |
Shutter Speed |
Program Auto (30"-1/4000* s) / Aperture Priority (30"-1/4000* s) / Shutter Priority (30"-1/4000* s) / Manual Exposure (Bulb, 30"-1/4000* s) / iAuto (4"-1/4000* s) *At F5.6 or greater aperture value. Fastest limit at F2 is 1/2000 s |
Aperture | F2-22 |
Image Control | Contrast, Saturation, Sharpness, Creative Style, Color Space (sRGB/Adobe® RGB), Quality (RAW/RAW & JPEG/Extra fine/Fine/Standard) |
Uncompressed RAW | Yes |

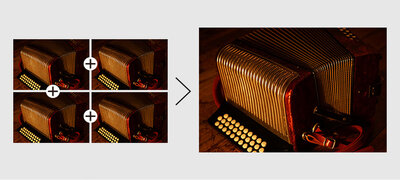

Noise Reduction | Long exposure NR: On/Off, available of shutter speeds longer than 1 s, High ISO NR: Normal / Low / Off, Multi Frame NR: Auto / ISO 100-102400 |
Dynamic Range Functions | Off, Dynamic Range Optimizer (Auto/Level 1-5), Auto High Dynamic Range: Off, Auto Exposure Difference, Exposure difference level (1.0-6.0 EV, 1.0 EV step) |

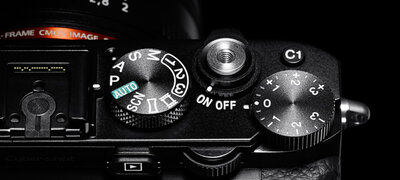

Shooting Mode | AUTO (Intelligent Auto/Superior Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR (Memory Recall) 1,2,3, Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection |
Scene Selection | Portrait, Sports Action, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti-Motion Blur |
Continuous Shooting Speed (maximum) (with max. recording pixels) | Speed priority continuous shooting: approx. 5fps, Continuous shooting: approx. 2.5fps (AF-S)15, 16 |
Self-Timer | 10 s/5 s/2 s/3 or 5 consecutive shots with 10 s, 5 s, or 2 s delay selectable/Bracketing shots with 10 s, 5 s, or 2 s delay selectable |
Drive Modes | Single, Continuous shooting, Speed priority continuous shooting, Self-timer, Self-timer (cont.), Cont.-bracketing17 , Single-bracketing17 , White balance bracketing17 , DRO bracketing17 , LPF bracketing17 |
Picture Effect | [Still Image] Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolor, Illustration, [Movie] Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono. |
Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box |
Auto Image Rotation | Yes |
Metering Type | 1200-zone evaluative metering |
Number of Recognized Scenes | [Still Image] Superior Auto: 44, Intelligent Auto: 33, [Movie] 33 |
Raw Output | 14 bit |
Minimum Illumination | Auto:1.5 lux (Shutter Speed 1/30") |
Built-in Flash Red-Eye Correction | On / Off |
Flash | |
Flash Mode | Flash Off / Autoflash / Fill-flash / Slow Sync. / Rear Sync. / Wireless (with optional compliant flash) |
AF Illuminator | Auto / Off |
Recording | |
Compatible Recording Media | Memory Stick Duo, Memory Stick PRO Duo™, Memory Stick PRO Duo™ (High Speed), Memory Stick PRO-HG Duo™, Memory Stick Micro™18 , Memory Stick Micro™ (Mark 2)18 , SD Memory Card, SDHC Memory Card, SDXC Memory Card, microSD Memory Card18 , microSDHC Memory Card18 , microSDXC Memory Card18, 19 |
Recording Format | [Still Image]: JPEG (DCF Ver.2.0, Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3 format), [Movie]: XAVC S, AVCHD format Ver. 2.0 compatible, MP4 |
Recording Format (Movie Audio) | XAVC S: LPCM 2ch/AVCHD: Dolby® Digital (AC-3) 2ch (Dolby® Digital Stereo Creator)/MP4: MPEG-4 AAC-LC 2ch |
Color Space (Still) | sRGB, Adobe® RGB |
Still Image Number of recorded pixels (Image Size) | [3:2] L: 42M (7,952 x 5,304) / M: 18M (5,168 x 3,448) / S: 11M (3,984 x 2,656), [4:3] L: 38M (7,072 x 5,304) / M: 16M (4,592 x 3,448) / S: 9.4M (3,536 x 2,656), [16:9] L: 36M (7,952 x 4,472) / M: 15M (5,168 x 2,912) / S: 8.9M (3,984 x 2,240), [1:1] L: 28M (5,296 x 5,296) / M: 12M (3,440 x 3,440) / S: 7.1M (2,656 x 2,656), [Sweep Panorama] Standard (3,872 x 2,160/8,192 x 1,856) / Wide (5,536 x 2,160/12,416 x 1,856) |
Movie Recording Mode (NTSC) | AVCHD: 28M PS (1,920 x 1,080/60p) / 24M FX (1,920 x 1,080/60i) / 17M FH (1,920 x 1,080/60i) / 24M FX (1,920 x 1,080/24p) / 17M FH (1,920 x 1,080/24p), XAVC S HD: 60p 50M (1,920 x 1,080/60p) / 30p 50M (1,920 x 1,080/30p) / 24p 50M (1,920 x 1,080/24p) / 120p 50M (1,280 x 720/120p), MP4: 28M (1,920 x 1,080/60p)/16M (1,920 x 1,080/30p)/6M (1,280 x 720/30p) |
Movie Recording Mode (PAL) | AVCHD: 28M PS (1,920 x 1,080/50p) / 24M FX (1,920 x 1,080/50i) / 17M FH (1,920 x 1,080/50i) / 24M FX (1,920 x 1,080/25p) / 17M FH (1,920 x 1,080/25p), XAVC S HD: 50p 50M (1,920 x 1,080/50p) / 25p 50M (1,920 x 1,080/25p) / 100p 50M (1,280 x 720/100p), MP4: 28M (1,920 x 1,080/50p) / 16M (1,920 x 1,080/25p) / 6M (1,280 x 720/25p) |
Interface | |
Input and Output Terminals | Multi/Micro USB Terminal20 , Micro HDMI, Microphone (1/8" Stereo minijack), Multi Interface Shoe |
NFC |
NFC forum Type 3 Tag compatible One-touch remote One-touch sharing |
WI-FI | Yes (IEEE802.11b/g/n [2.4 GHz band]) |
Wireless Capabilities |
Wi-Fi® NFC forum Type 3 Tag compatible One-touch remote One-touch sharing Eye-Fi |
Power | |
Power Source | DC3.6 V (supplied battery) / DC5.0 V (supplied AC Adapter) |
Battery System | Rechargeable Battery Pack NP-BX1 |
Power Consumption (Camera Mode) | Approx. 2.5W with LCD monitor and approx. 2.7W with viewfinder (CIPA standard) |
USB Charge/USB Power Supply | Yes (supplied AC adapter) |
BATTERY LIFE(STILL IMAGES)(CIPA) | [Still Images]21: Monitor: Approx. 220 shots / Approx. 110 min., Viewfinder: Approx. 200 shots / Approx. 100 min., [Movies (actual shooting)]22, 23: Monitor: Approx. 30 min., Viewfinder: Approx. 30 min. (In [MP4 28M] mode, max. continuous shooting time is approx. 20 min. and max. file size is 4 GB.), [Movies (continuous shooting)]22: Monitor: Approx. 50 min., Viewfinder: Approx. 50 min. (In [MP4 28M] mode, max. continuous shooting time is approx. 20 min. and max. file size is 4 GB.)24 |
Supplied Battery | Rechargeable battery pack NP-BX1 |
Others | |
PlayMemories Camera Apps | Yes |
Shooting Functions | Smart Teleconverter (approx. 1.4x/2x) / Eye AF / Lock-on AF / Face Detection / Face Registration / Smile shutter / Grid Line / Quick Navi / Digital Level Gauge (pitch and roll) / Exposure Bracketing / White Balance Bracketing / DRO Bracketing / Flash Bracketing / LPF bracketing / MF Assist / Peaking / Zebra / Marker Display / Photographer Name & Copyright / ISO Auto Minimum Shutter Speed / PC Remote Control / Auto Object Framing |
Playback Functions | BRAVIA® Sync (Control for HDMI) / Single (with or without shooting information, RGB histogram & highlight/shadow warning) / 9/25-frame index view / Enlarged display mode / Auto Orientation / Slideshow / Panorama scrolling / Auto Review (10 s/5 s/2 s/off) / Forward / Rewind (Movie) / Delete / Protect / 4K still image playback |
Operating Temperature | Approx. 0 °C to 40 °C (32 °F to 104 °F) |
Playback Zoom | Depends on Image Size |
Index Playback | 9 / 25 images |
Exif Print, PRINT Image Matching (PIM3) | |
Size & Weight | |
WEIGHT (CIPA COMPLIANT) | 1 lb 0.9 oz (480 g)/1 lb 1.9 oz (507g) (With battery and Memory Stick PRO Duo™) |
DIMENSIONS (W X H X D) (APPROX.) | 4.46 x 2.57 x 2.83 in |
Supplied Accessory | |
WHAT'S IN THE BOX |
Rechargeable Battery Pack NP-BX1 AC Adapter Micro USB cable Shoulder strap Lens cap Shoe cap Instruction Manual Cleaning cloth Battery charger Eyepiece cup |
