Sensor | |
---|---|

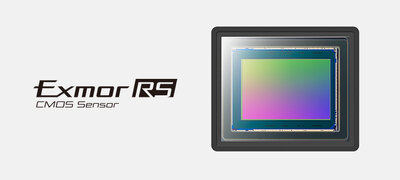

Sensor Type | 1.0"-type (0.52" x 0.35") Exmor RS® CMOS sensor, aspect ratio 3:2 |
Number of Pixels (Effective) | Approx. 20.1 Megapixels |
Number of Pixels (total) | Approx. 21.0 Megapixels |
Lens | |
Lens type | ZEISS Vario-Sonnar® T* Lens, 18 elements in 13 groups (6 aspheric elements, including AA lens) |
F-number (Maximum Aperture) | F2.4 (W)–4.0 (T) |
ND Filter | - |
Focal length (f=) | f = 8.8–220 mm |
ANGLE OF VIEW (35 MM FORMAT EQUIVALENT) | 84 deg-4 deg 10 min (24-600 mm19)20 |
Focus Range (From the Front of the Lens) | AF (W: Approx. 3 cm (0.10 ft) to infinity, T: Approx. 72 cm (2.36 ft) to infinity, f=250 mm (35 mm format equivalent): Approx. 140 cm (4.59 ft) to infinity), Focus range from the image sensor: AF (W: Approx. 18 cm (0.59 ft) to infinity, T: Approx. 92 cm (3.02 ft) to infinity, f=250 mm (35 mm format equivalent): Approx. 157 cm (5.16 ft) to infinity) |
Optical Zoom | 25X (optical zoom during movie recording) |
Clear Image Zoom (Still Image) | 20M Approx. 50x/10M Approx. 70x/5M Approx. 100x/VGA Approx. 380x |
Clear Image Zoom (Movie) | 4K: Approx. 37.5x; HD: Approx. 50x |
Digital Zoom (Still Image) | 20M Approx. 100x/10M Approx. 140x/5M Approx. 200x/VGA Approx. 380x |
Digital Zoom (Movie) | Digital Zoom Approx. 100x |
Filter Diameter | 72mm |
Screen | |

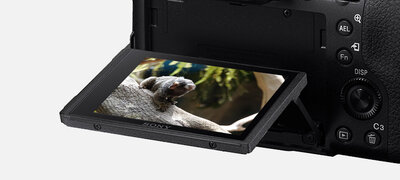

Screen Type | 3.0-type (7.5 cm) (4:3)/1,440,000 dots/Xtra Fine/TFT LCD |
Adjustable Angle | Up by approx. 109 degrees, down by approx. 41 degrees |
Display Panel (On Top) | Yes |
Display Selector (Finder/Lcd) | Auto/EVF (Manual)/Monitor (Manual) |
MS Assist Magnification | 5.3x, 10.7x |
Viewfinder | |
Screen Type/Number of Dots | 0.39-type electronic viewfinder (XGA OLED), 2,359,296dots |
Field Coverage | 100% |
Magnification | Approx. 0.70x with 50-mm lens at infinity, -1m-1 (diopter) (35 mm equiv.) |
Eye Point | Approx. 23 mm from the eyepiece, 21.5 mm from the eyepiece frame at -1m-1 (diopter) (CIPA standard) |
Diopter Adjustment | -4.0 to +3.0m-1 |
Brightness Control | Manual(5 steps) / Sunny Weather |
Camera | |
Image Processing Engine | Yes (BIONZ X) |
STEADYSHOT (STILL IMAGE) | Optical; Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type) |

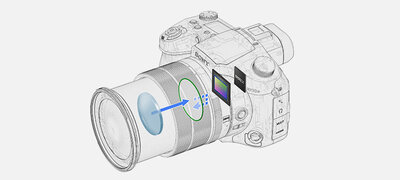

Focus Type | Fast Hybrid AF (phase-detection AF/contrast-detection AF) |

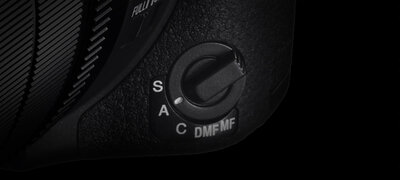

Focus Mode | Single-shot AF; Automatic AF; Continuous AF; DMF; Manual Focus |

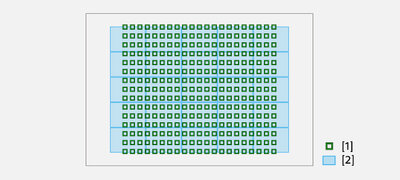

Focus Area | Wide (315 points (phase-detection AF), 25 points (contrast-detection AF)); Center; Flexible Spot (S/M/L);Expanded Flexible Spot; Lock on AF (Wide/Center/Flexible Spot (S/M/L)/Expanded Flexible Spot) |
LOCK ON AF | Yes |
Light Metering Mode | Multi Pattern; Center Weighted; Spot (Standard/Large); Entire Screen Avg.; Highlight |
Exposure Compensation | +/- 3.0EV, 1/3EV step |
ISO Sensitivity (Still Image)(Recommended Exposure Index) | Auto(ISO100–12800, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO64/80), Multi-Frame NR: Auto (ISO100–12800), 100/200/400/800/1600/3200/6400/12800/25600 |
ISO Sensitivity (Movie) | Auto: (ISO100–ISO12800 Level, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 |
Minimum Illumination (Movie) | Auto: 2.4 lux (shutter speed 1/30) |
White Balance Modes | Auto; Daylight; Shade; Cloudy; Incandescent; Fluor.: Warm White; Fluor.: Cool White; Fluor.: Day White; Fluor.: Daylight;Flash;C.Temp./Filter;Custom |
WB Micro Adjustment |
Yes |
Shutter Speed |
iAuto (4"–1/2000*)/Program Auto (30"–1/2000*)/Manual Exposure (Bulb, 30"–1/2000*)/Aperture Priority (30"–1/2000*)/Shutter Priority (30"–1/2000*); *At F8 or greater aperture value. Fastest limit at F2.4 is 1/1000.21 |
Electronic Shutter | iAuto (4"–1/32000)/Program Auto (30"–1/32000)/Manual Exposure (30"–1/32000)/Aperture Priority (30"–1/32000)/Shutter Priority (30"–1/32000) |
Aperture | iAuto (F2.4/F11)/Program Auto (F2.4/F16)/Manual (F2.4/F16)/Shutter Priority (F2.4/F11)/Aperture Priority (F2.4/F16) |
Image Control | Contrast;Saturation;Sharpness;Creative Style;Color Space(sRGB / Adobe RGB);Quality(RAW / RAW&JPEG / Extra fine / Fine / Standard) |
Noise Reduction | Long exposure NR: On/Off, available for shutter speeds longer than 1/3 s; High ISO NR: Normal/Low/Off; Multi Frame NR: Auto, ISO 100–25600 |
Dynamic Range Functions | Off, Dynamic Range Optimizer (Auto/Level 1–5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0–6.0 EV, 1.0 EV step)) |
Shooting Mode | AUTO (Intelligent Auto/Superior Auto); Program Auto; Aperture Priority; Shutter Speed Priority; Manual Exposure; MR (Memory Recall) [body 3 sets/memory card 4 sets]; Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure); HFR Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure); Panorama; Scene Selection |
Scene Selection | Portrait; Sports Action; Macro; Landscape; Sunset; Night Scene; Handheld Twilight; Night Portrait; Anti Motion Blur |
Continuous Shooting Speed (maximum) (with max. recording pixels) | Continuous Shooting Hi: approx. 24fps, Continuous Shooting Mid: approx. 10fps, Continuous Shooting: approx. 3.5fps22, 23, 24 |
Self-Timer | 10 s / 5 s / 2 s / 3 or 5 consecutive shots with 10 s 5 s or 2 s delay selectable/Bracketing shots with 10 s 5 s or 2 s delay selectable |
Drive Modes | Single; Continuous shooting (Hi/Mid/Lo); Self-timer; Self-timer (cont.); Cont. bracketing25; Single bracketing25; White balance bracketing25; DRO bracketing25 |
Panorama (Shooting) | Sweep Panorama |
Picture Effect | Still Image:Toy camera;Pop Color;Posterization;Retro Photo;Soft High-key;Partial Color;High Contrast Mono.;Soft Focus;HDR Painting;Richtone Monochrome;Miniature;Watercolor;Illustration;Movie:Toy camera;Pop Color;Posterization;Retro Photo;Soft High-key;Partial Color;High Contrast Mono. |
Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box |
Picture Profile | off/PP1-PP9 (Black Level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset) |
Number of Recognized Scenes | Still Image: Superior Auto: 44 / iAuto: 33; 44 |
Flash | |
Flash Mode | Built-in, manual pop-up |
Flash Type | Auto/Flash On/Slow Synchro/Rear Sync /Flash Off/Wireless (with optional compatible flash) |
AF Illuminator | Auto / Off |
Bracketing | Yes |
External Flash Mode | Sony α System Flash compatible with Multi Interface Shoe, attach the optional shoe adapter for flash compatible with Auto-lock accessory shoe |
Flash Range | ISO Auto: About 3.28 to 35.43 ft (1.0 to 10.8 m) (W) / About 3.28 to 21.33 ft 1.0 to 6.5 m) (T), ISO 12800: up to about 68.24 ft (20.8 m) (W) / about 41.99 ft (12.8 m) (T) |
Recording | |
Compatible Recording Media | Memory Stick Duo26; Memory Stick PRO Duo26; Memory Stick PRO Duo (High Speed)26; Memory Stick PROHG Duo26; Memory Stick Micro27, 26; Memory Stick Micro (Mark2)27, 26; SD Memory Card26; SDHC Memory Card (UHS-I)26; SDXC Memory Card (UHS-I)26; microSD Memory Card27, 26; microSDHC Memory Card27, 26; microSDXC Memory Card27, 26 |
Recording Format | Still Image: JPEG (DCF Ver. 2.0, Exif Ver. 2.31, MPF Baseline compliant), RAW (Sony ARW 2.3 format); XAVC S; AVCHD format Ver. 2.0 compatible |
Recording Format (Movie Audio) | XAVC S: LPCM 2ch; AVCHD: Dolby Digital (AC-3) 2ch (Dolby Digital Stereo Creator) |
Color Space (Still) | sRGB, Adobe® RGB |
DCF/DPOF | DCF/DPOF/EXIF/MPF |
Still Image Number of recorded pixels (Image Size) | Still Image: 3:2 mode: 20M(5472×3648)/10M(3888×2592)/5M(2736×1824), 4:3 mode: 18M(4864×3648)/10M(3648×2736)/5M(2592×1944)/VGA, 16:9 mode: 17M(5472×3080)/7.5M(3648×2056)/4.2M(2720×1528), 1:1 mode: 13M(3648×3648)/6.5M(2544×2544)/3.7M(1920×1920); 16:9 mode: 17M(5472×3080)/7.5M(3648×2056)/4.2M(2720×1528) |
HFR |
|
Still Image Number of recorded pixels (Image Size) during Movie | 16:9 mode: 17M (5472×3080)/7.5M (3648×2056)/4.2M (2720×1528) |

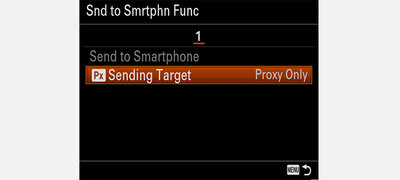

Proxy Recording | Yes |
Interface | |
Input and Output Terminals | Multi/Micro USB Terminal28, Hi-Speed USB (USB2.0), Micro HDMI, Microphone (0.14" stereo mini jack), Multi Interface Shoe, Headphones |
NFC | NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing |
WI-FI | Yes(IEEE802.11b/g/n(2.4GHz band)) |
Interfaces | - |
Bluetooth | Yes (Bluetooth Standard Ver. 4.1 (2.4 GHz band)) |
Power | |
Power Source | DC7.2 V (supplied battery)/DC5.0 V (supplied AC adapter) |
Battery System | Rechargeable battery pack NP-FW50 |
Power Consumption (Camera Mode) | Approx. 2.2 W with LCD monitor and approx. 2.4 W with viewfinder |
USB Charge/USB Power Supply | Yes (Shooting, Playback) |
BATTERY LIFE(STILL IMAGES)(CIPA) | Monitor:Approx. 400/Approx. 200 min., ViewFinder: Approx. 370/Approx. 185 min.29 |
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA) | Monitor:Approx. 75 min., ViewFinder: Approx. 75 min.30, 31 |
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA) | Monitor:Approx. 135 min., ViewFinder: Approx. 135 min.32, 30 |
Others | |
PlayMemories Camera Apps | - |

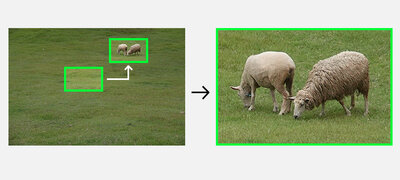

Shooting Functions | Eye AF; Face Detection; Face Registration; Still Image Recording (during movie recording); Smile shutter; Grid Line; Quick Navi; Digital Level Gauge (pitch and roll); WB Bracket; DRO Bracketing; MF Assist; Peaking; Zebra; Marker Display; Audio Level Display; Audio Out Timing; Step Zoom/Quick Zoom; TC/UB; Photographer Name & Copyright; ISO Auto Minimum Shutter Speed; PC Remote Control; Zoom Assist; Focus Hold; Gamma Disp. Assist; [Mov]AF Track Sensitivity; [Mov]AF Drive Speed; Set File Name; Focus Range Limiter33 |
Playback Functions | BRAVIA® Sync (Control for HDMI); 9/25-frame index view; Auto Orientation; Slide Show; Forward/Rewind (Movie); Delete; Protect; Motion Shot Video; Photo Capture; Automatic Image Rotation; Cont. Shoot Grouping |
TRILUMINOS Color | Yes34 |
4K image output | Yes |
Operating Temperature | 0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F. |
Exif Print;PRINT Image Matching (PIM3) | |
Size & Weight | |
WEIGHT (CIPA COMPLIANT) | Approx. 2 lb 6.7 oz (1095 g) (Battery and SDXC Card are included)/Approx. 2 lb 5.1 oz (1050 g) (Body Only) |
DIMENSIONS (W X H X D) (APPROX.) | 5 1/4 x 3 3/4 x 5 3/4" (132.5 x 94.0 x 145.0 mm) 5 1/4 x 3 3/4 x 5 1/8" (132.5 x 94.0 x 127.4 mm) (from front of lens to monitor) |
Supplied Accessory | |
WHAT'S IN THE BOX |
Rechargeable Battery Pack NP-FW50 AC AdapterAC-UUD12 Micro USB cable Shoulder strap Lens cap Shoe cap Lens hood Eyepiece cup Instruction Manual |
