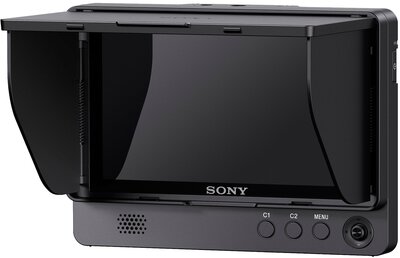

CLM-FHD5 Clip-On LCD Monitor
CLM-FHD5 Clip-On LCD Monitor
Capability to display Full HD video, shooting assist functions that take photos and movies seriously, plus compatibility with various camera batteries make the CLM-FHD5 especially practical for outdoor shooting.
Full HD-compatible compact
Designed to be a perfect accessory especially for compact cameras, the CLM-FHD5 is extra-capable at displaying glorious high-resolution Full HD images on a larger screen, in place of a viewfinder for cameras with a high pixel count, so you can use it to ensure precise focus by examining fine details.
Enlarge an image for a closer look
Press the center of the monitor's ZOOM/SELECT button to toggle through a magnification ratio cycle from 1x, to 3x, to 6x. With 3x or 6x magnification, you can move the enlarged area1 to a desired position for precise focus checking by manipulating the ZOOM/SELECT button (Up/Down/Left/Right).
Peaking function enables instant focus check
The monitor's peaking function displays an image in monochrome except for the area(s) that are in relatively sharp focus indicated in red, so you can instantly check to see if focus is where you want it to be. This function is also available for enlarged images, and different peaking levels are used for different magnifications.
False Color shows video signal level distribution
False Color function displays video signal levels of entire image input as color distribution to help users accurately set and adjust exposure levels. Six colors are used - red indicates 108% (video signal level) or more and violet indicates 3% (video signal level) or less.
Simplify checking for overexposure/underexposure
Video Level Marker colors specific video brightness levels in images to help achieve optimum exposure and skin tone according to a user-selected target video signal level. Relative to the user-selected level, dark gray indicates lower video signal level (areas of lower exposure) and light gray indicates higher video signal level (areas of higher exposure).
View S-Log images of natural brightness
S-Log Disp. Assist functions show S-Log images with brightness and contrast close to those of the image as it appears in regular shooting mode, for easier focusing and monitoring. It also allows users to adjust brightness while images are displayed in S-Log Disp. Assist (S-Log Disp. Assist Gain Adjustment).
Marker displays for more TV frame types
Choose suitable frame proportions to record movies. Select an 80% or 90% frame for viewing in either of two aspect ratios and see how the full image is to be cropped for TV viewing. Choose among four Marker display settings according to particular conditions for playback of your footage on a TV: 80% (16:9), 90% (16:9), 80% (4:3) and 90% (4:3).
Easy customizable control
C1 and C2 customizable buttons can provide direct, simple access among eight frequently used functions (Peaking, False Color, Video Level Marker, Volume, Brightness, Contrast, Color-tone (phase/hue), Backlight) for more speedy, intuitive, responsive shooting. Also, Peaking and False Color functions are assigned to C1 and C2 respectively by default.
Picture every tone with precision
To enhance visibility, you can adjust the monitor's brightness, contrast, color tone, backlight, color temperature (screen white balance) just as you like, or according to shooting conditions. Moreover, the preview function allows you to check the effects of your settings before you save those settings.
More compatible with more camera brands
Only in an ideal world are we inseparable from our Sony cameras. But to make the CLM-FHD5 more practical for use from everyone's point of view in the real world, the monitor easily connects to a variety of cameras (in addition to Sony's) that are equipped with an HDMI terminal for high-resolution output and feature live-view function.
Full multi-angle flexibility
See a fantastic view from virtually any angle. The shoe adapter in which the monitor sits can swivel about 180 degrees both right and left, and can flip about 90 degrees both forward and backward, so the monitor can pan and tilt as freely and smoothly as you want it to, whether it's mounted on a tripod, bracket, or other stable support.
Secure your position
Top and bottom receptacle openings let you attach the monitor as you like (using screws and bolts, for example) to a tripod, bracket, or other stable support, giving you all the freedom you need to situate the monitor securely and safely for viewing from virtually any conceivable position, in any situation.
Listen up
Great viewing is not all that the CLM-FHD5 has to offer. You can also clearly hear the sound that is/has been recorded along with movie footage either privately by connecting headphones to the monitor's headphone jack, or by listening to the monitor's built-in monaural speaker.Clean image
Tolgan, Barbados:
Really works as a native monitor. Price is stupidly high, but other than that. Highly recommended
Specifications
| LCD | |
|---|---|
| LCD Panel | TFT Normally Black |
| Picture Size | 5 type |
| LOCK ON AF | Approx. 80°/Approx. 80° |
| Efficient picture size (Approx.) (w × h): | 4.33" x 2.44" (110 mm x 61.9 mm) |
| Resolution | 1,920 x 1,080 pixels |
| Aspect Ratio | 16 : 9 |
| Size & Weight | |
| Dimensions (W x H x D) | Approx. 3.94" x 5.47" x 0.91" (Excluding projecting parts) |
| Weight | 9.52 oz (main unit only) |
| General Specifications | |
| LCD Display |
DC 7.2 V (Sony M series battery, Sony W series battery) DC 6.8 V (Sony V series battery NP-FV50, NP-FV70, NP-FV100) DC 7.4 V Sony V series battery NP-FV100A) DC 7.6 V (AC-PW10AM) |
| Power Consumption | Approx. 5.5 W |
| Storage Temperature | Approx. -20 °C to +60 °C |
| Interface | |
| Input / Output |
HDMI input jack: HDMI (Type A) (1), DC IN jack: DC 7.6 V Built-in speaker output: Approx. 0.5 W Monaural, Headphones output jack: Ø 3.5 Stereo mini jack (1) |
| Others | |
| Operating Temperature | Approx. 0 °C to 40 °C |
What's in the Box
- Shoe adapter (1)
- Sun shade hood (1)
- Battery adapter (1)
- HDMI cable (Mini HDMI) (Approx. 17.72", Type A - Type C) (1),
- HDMI cable (Micro HDMI) (Approx. 17.72", Type A - Type D) (1)
- Carrying pouch (1)
- Set of printed documentation
