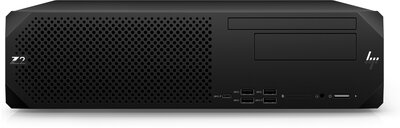

HP Z2 Small Form Factor G9 Workstation

Full height, full length performance

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel^® Core^™ processors.

Configurable for today. Expandable for tomorrow.

Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.¹

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Smaller, Functional Design

The stunning new design features front and rear ledges, so you can easily move your system from location to location.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Thermal Management

Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.

Custom Performance Modes

Take on the toughest workflows with three custom pre-set modes that optimize performance from the BIOS—High Performance, Performance and Quiet.

Ports

1 SuperSpeed USB Type-C^® 20Gbps signaling rate (USB Power Delivery, DisplayPort^™ 1.4, HP Sleep and Charge)

4 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging)

1 universal audio jack

3 USB Type-A 5Gbps signaling rate

2 DisplayPort^™ 1.4

1 RJ-45

1 audio-in

1 audio-out

1 HP Fiber NIC Port Flex IO

3 USB Type-A 480Mbps signaling rate

Intel^® Core^™ i7 14700K

Intel^® UHD Graphics 770

32 GB DDR5

Windows 11 Pro

1 TB SSD

15.1 x 12.1 x 3.95 in

Operating system	Windows 11 Pro
Memory	32 GB DDR5-4800 MHz RAM (1 x 32 GB)
Standard memory note	Transfer rates up to 4800 MT/s.
Internal Storage	1 TB HP Z Turbo Drive PCIe^® Gen4 TLC M.2 SSD
Storage type	SSD
Internal drive bays	One 2.5" HDD One 3.5" HDD Three M.2 NVME 2280 SSD
External drive bays	One 3.5" HDD One slim ODD
Processor	Intel^® Core^™ i7-14700K (up to 5.6 GHz with Intel^® Turbo Boost Technology, 33 MB L3 cache, 16 cores, 28 threads)³^,⁴
Processor family	Intel^® Core^™ i7 14th generation processor
Weight	Starting at 11.1 lb⁵
Graphics	Integrated
Graphics (integrated)	Intel^® UHD Graphics 770
Power	450 W 90% efficient, wide-ranging, active PFC⁶
Dimensions (W x D x H)	15.1 x 12.1 x 3.95 in⁷
Keyboard	HP USB 320K Keyboard
Pointing device	HP Wired 320M Mouse
Audio	Realtek ALC3252
Expansion slots	1 half-height PCle 4 x16 1 half-height PCle 3 x4 1 half-height PCle 3 x4 (x16 connector) 1 half-height PCle 3 x1 1 full-height PCle 4 x16 1 full-height PCle 4 x16 (x16 connector)⁸^,⁹
I/O Port location	Front Rear
Ports	1 SuperSpeed USB Type-C^® 20Gbps signaling rate (USB Power Delivery, DisplayPort^™ 1.4, HP Sleep and Charge) 4 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging) 1 universal audio jack 3 USB Type-A 5Gbps signaling rate 2 DisplayPort^™ 1.4 1 RJ-45 1 audio-in 1 audio-out 1 HP Fiber NIC Port Flex IO 3 USB Type-A 480Mbps signaling rate
Security management	HP Secure Erase HP Sure Click HP BIOSphere Gen6 HP Sure Admin Hood Sensor Optional Kit HP Client Security Manager Gen6 HP Sure Start Gen7 HP Sure Recover Gen4 HP Tamper Lock HP Sure Sense Gen2 HP Sure Run Gen5¹⁰^,¹¹^,¹²^,¹³^,¹⁴^,¹⁵^,¹⁶^,¹⁷^,¹⁸
Ecolabels	EPEAT^® registered
Sustainable impact specifications	80 Plus^® Gold power supplies available 25% ITE-derived closed loop plastic Bulk packaging available Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable 45% post-consumer recycled plastic 10% ITE-derived closed loop plastic Ocean-bound plastic in speaker enclosure and system fan Low halogen PCAs Product Carbon Footprint Ocean-bound plastic in system fan, processor fan and speaker¹⁹^,²⁰^,²¹^,²²^,²³
Energy star certified	ENERGY STAR^® certified
Software included	HP PC Hardware Diagnostics UEFI HP Support Assistant HP PC Hardware Diagnostics Windows HP Privacy Settings HP Desktop Support Utilities HP Image Assistant HP Manageability Integration Kit HP Notifications Performance Advisor 3.0 HP Data Science Stack Manager myHP
Security Software Licenses	HP Wolf Pro Security Edition (1 year)²⁴
Management features	HP Client Catalog (download) HP Cloud Recovery HP Driver Packs HP Management Integration Kit for Microsoft System Center Configuration Management Gen4 HP System Software Manager (download) HP BIOS Configuration Utility (download) HP Image Assistant (download) HP Client Management Script Library (download)²⁵
Manufacturer Warranty	3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Support service included	HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150ENW & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123ENUS.pdf
Documents	HP Z2 SFF G9 Workstation Desktop PC

Protected by HP Wolf Security

HP Wolf Security is a hardware-enforced, resilient defense that ensures your protection from cyber attacks.²

Reliability you can trust

Work with confidence knowing your PC has been tested for heavy workloads and environments.

Run your system 24/7 without overheating

Innovatively designed to keep hardware components cool and quiet no matter how hard you push it.

Less Waste Created with Z

100% of Z by HP Workstations include ocean-bound and/or recycled plastics.¹

¹ Third party software sold separately.

² 60% of the plastics in the product are post consumer recycled plastics. Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard. 100% outer box packaging made from sustainably sourced certified and recycled fibers. Fiber cushions made from 100% recycled wood fiber and organic material. Any plastic cushions are made from >90% recycled plastic.

³ Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.

⁴ Intel^® Turbo Boost performance varies depending on hardware, software and overall system configuration. See http://www.intel.com/technology/turboboost/ for more information.

⁵ Exact weights depend upon configuration (System weight only)

⁶ Specific chassis required for 550 W 92% efficient, wide-ranging, active PFC power supply.

⁷ Standard desktop orientation.

⁸ When slot 2 is configured with a PCle card, slot 1 will automatically downgrade to PCle x8 electrical.

⁹ 1 M.2 2230 slot for WLAN and 3 M.2 2280 slots for storage

¹⁰ HP Client Security Manager Gen7 requires Windows and is available on the select HP PCs.

¹¹ HP BIOSphere Gen6 features may vary depending on the platform and configurations.

¹² HP Sure Click requires Windows 10 Pro or higher or Enterprise. See https://bit.ly/2PrLT6A_SureClick for complete details.

¹³ HP Sure Start Gen7 is available on select HP PCs and workstations. See product specifications for availability.

¹⁴ HP Sure Run Gen5 is available on select HP PCs and requires Windows 10 and higher.

¹⁵ HP Sure Recover Gen4 is available on select HP PCs and requires an open network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data.

¹⁶ HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel^® Optane^™.

¹⁷ HP Sure Sense requires Windows 11 Pro or Enterprise and supports Microsoft Internet Explorer, Google Chrome^™, and Chromium^™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.

¹⁸ HP Sure Admin requires Windows 10 or higher, HP BIOS, HP Manageability Integration Kit from http://www.hp.com/go/clientmanagement and HP Sure Admin Local Access Authenticator smartphone app from the Android or Apple store.

¹⁹ Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal parts over 25 grams.

²⁰ Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.

²¹ 100% of paper-based packaging made from sustainably sourced, certified, and recycled fibers.

²² External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.

²³ For more information about Product Carbon Footprint visit: https://h20195.www2.hp.com/v2/library.aspx?doctype=95&footer=95&filter_doctype=no&showregionfacet=yes&filter_country=no&cc=us&lc=en&filter_oid=no&filter_prodtype=rw&prodtype=ij&showproductcompatibility=yes&showregion=yes&showreglangcol=yes&showdescription=yes%23doctype-95&sortorder-popular&teasers-off&isRetired-false&isRHParentNode-false&titleCheck-false#doctype-95&sortorder-popular&teasers-off&isRetired-false&isRHParentNode-false&titleCheck-false .

²⁵ HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html
