Explore ROGSTRIXX670EAGAMINGWIFI

Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

RYZEN AMD, AMD SOCKET AMS X670E logos

16 + 2 teamed power solution rated for 70 A per stage.

Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance.

AI Cooling II uniquely balances noise and thermals for your system with a single click.

An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready.

6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP.

Easy installation for GPUs and SSDs, plus simple BIOS resets and updates.

Faster-than-Gigabit Wi-Fi that unlocks access to the low-interference 6 GHz band.

DIY-FRIENDLY FEATURES

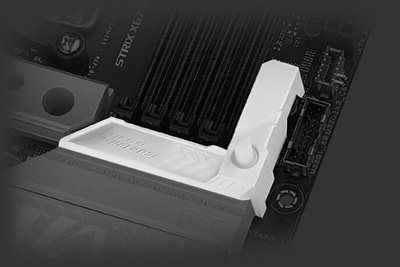

PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.

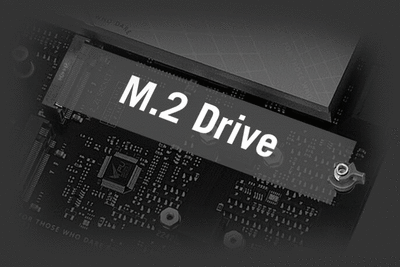

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

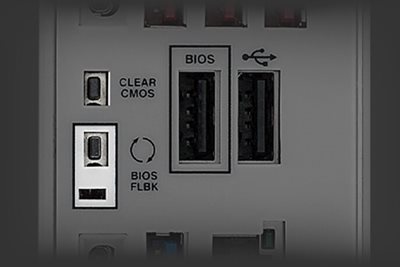

CLR CMOS BUTTON

The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK™

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

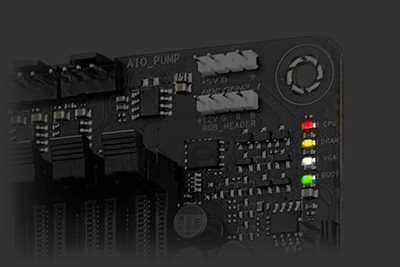

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

SPECIFICATIONS

PERFORMANCE

AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
Expansion Slots

1 x PCIe 5.0 x16 SafeSlot [CPU]
1 x PCIe 4.0 x16 Slot [Chipset]
1 x PCIe 3.0 x1 Slot [Chipset]

16 + 2 Power Stages

DDR5 6400+ (OC)

4 x DIMM
Dual channel

4 x M.2 Slots

2 x M.2 2242-2280 (PCIe 5.0 x4)
1 x M.2 2242-22110 (PCIe 4.0 x4)
1 x M.2 2242-2280 (PCIe 4.0 x4)

COOLING

VRM Heatsinks
3 x M.2 Heatsinks
AIO Pump Header

Chipset Heatsink
5 x 4-pin PWM Chassis Fan Headers

GAMING IMMERSION

ROG Strix X670E-A immersion specifications

Aura Lighting

SupremeFX ALC4080 CODEC +
Savitech SV3H712 AMP
- Impedance sense
- 120 dB SNR stereo playback output
- 113 dB SNR recording input
- SupremeFX shielding
Sonic Studio III + Sonic Studio Virtual Mixer +
Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound™
Two-Way AI Noise-Cancelation

3 x 3-pin Addressable Gen 2 RGB Headers
1 x 4-pin Aura RGB Header

CONNECTIVITY

1 x HDMI® Port
1 x DisplayPort
8 x USB 3.2 Gen 2 Ports
(7 x Type-A, 1 x USB Type-C®)
2 x USB 2.0 Ports (2 x Type-A)
Clear CMOS Button
BIOS FlashBack™ Button
1 x USB 3.2 Gen 1 Port (1 x Type-A)
1 x USB 3.2 Gen 2x2 Port (1 x USB Type-C®)
1 x Intel® 2.5 Gb Ethernet Port

Wi-Fi 6E
1 x Optical S/PDIF Out Port
5 x Audio Jacks
1 x USB 3.2 Gen 2x2 Connector
(Supports USB Type-C®)
1 x USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
4 x SATA 6 Gb/s Ports
2 x USB 2.0 Headers
(Supports 4 x USB 2.0 Ports)
1 x Thunderbolt™ Header

ALL-ROUND PERFORMANCE

Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.

PCIE 5.0

Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

OVERCLOCKING

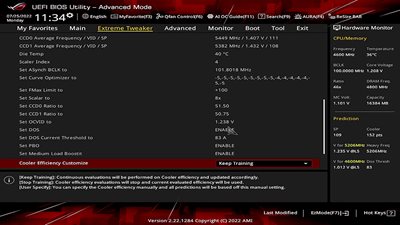

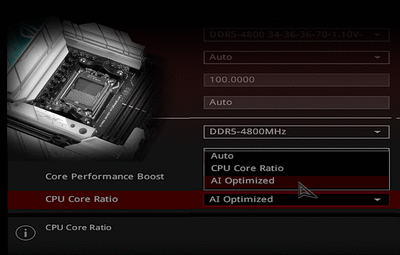

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

WHAT'S NEW?

As the first foray of AI Overclocking on an AMD architecture, the set of parameters has changed substantially, but voltage and clock speeds are still the primary targets for adjustment, with every core having a recommended VID and frequency.

Predictive settings in the utility are designed to work in tandem with Precision Boost Overdrive (PBO), but they go one step further by enhancing the values for EDC, TDC, and PPT, as well as tuning the curve optimizer.

Finally, by enabling the Dynamic OC Switcher, AI Overclocking ensures that the CPU is using ideal settings whether in single- or multi-threaded workloads.

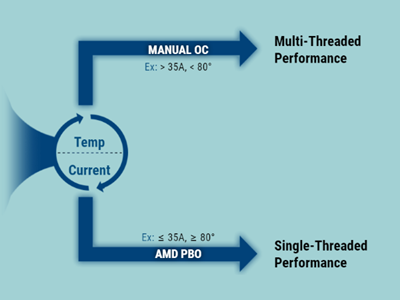

DYNAMIC OC SWITCHER

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Ryzen Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.

EXAMPLE:

If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35 A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.

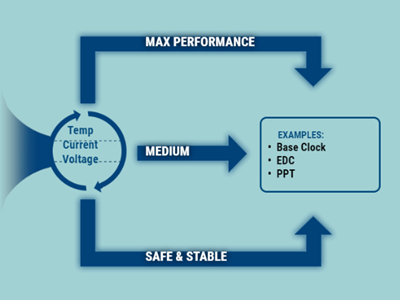

RYZEN CORE FLEX

Ryzen Core Flex empowers you to smash limits farther than ever before by letting you control current, power, and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.

EXAMPLES:

Base Clock

For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads.

At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35 A.

Then the BCLK drops down to 102, and stays in that Level 2 range up until 55 A.

From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.

EDC

By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.

During lightly threaded workloads, below 35 A, the Level 1 EDC is set to a low value, in this case 60.

As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.

Once the CPU passes 70 A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.

PPT

In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically, the short-term value (“Fast”) is used.

Until the CPU reaches 70°, it can run at full performance, so 350 W is set to give plenty of overhead.

At that point, the power limit reduces to 220 W, to let the CPU start reducing heat.

If it is still under sustained load and keeps getting hotter, then a more stringent 165 W PPT is set at 85°.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

POWER DESIGN

TEAMED POWER ARCHITECTURE

16 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen™ 7000 through any workload.

ALLOY CHOKES AND DURABLE CAPACITORS

Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

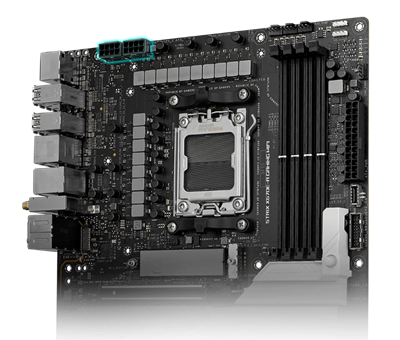

ROG Strix X670E-A ProCool II connector locations

2 X 8-PIN PROCOOL II POWER CONNECTORS

ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

DIGI+ POWER CONTROL

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

EIGHT-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

MEMORY

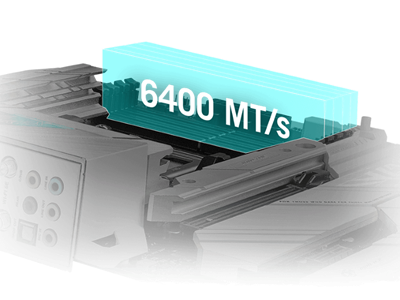

ROG Strix X670E-A supports DDR5 ram with 6400 MT/s

DDR5 Strength

For those who want to fly past stock DDR5 speeds, the Strix X670E-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing, and voltage profiles that you can effortlessly apply to unleash performance.

COOLING

VRM

VRM HEATSINKS
Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 7000 Series processors.

M.2 HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.

M.2

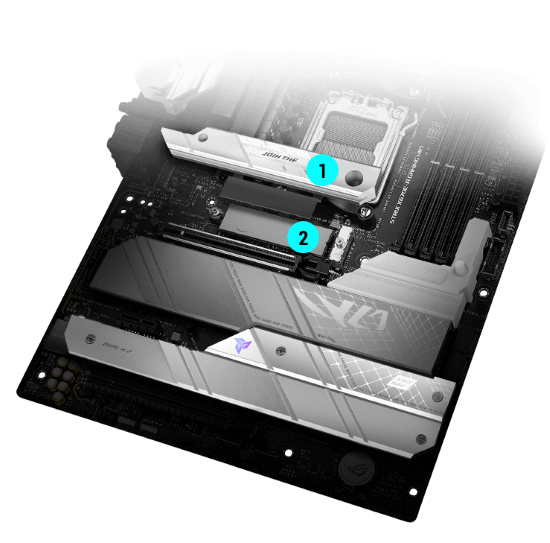

M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

M.2 BACKPLATE
An integrated backplate on the M.2_1 slot helps ensure that high-performance PCIe 5.0 drives can deliver peak performance, even when airflow is restricted.

CPU

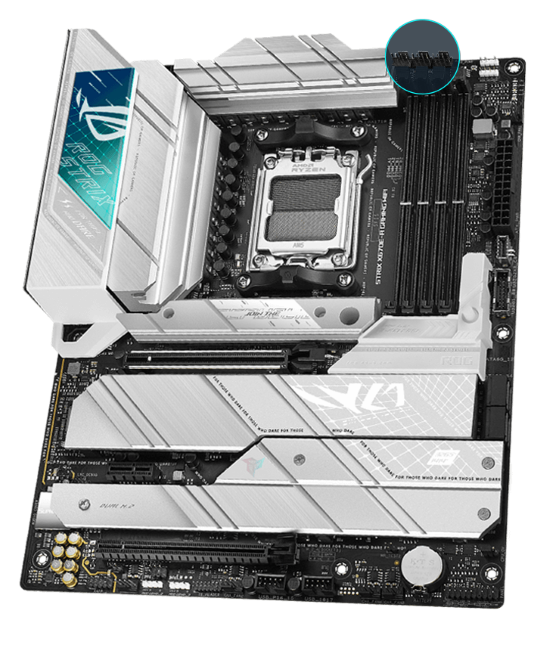

CPU FAN HEADERS

A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO PUMP FAN HEADER

A dedicated PWM/DC header connects self-contained water-cooling setups.

CHASSIS

4-PIN PWM/DC FAN HEADERS

Each header supports auto-detection of PWM or DC fans.

LEADING CONNECTIVITY

The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

NETWORKING

WI-FI 6E

Onboard Wi-Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

INTEL 2.5G ETHERNET

Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

ROG Strix X670E-A features Wi-Fi 6E, an included antenna, and 2.5 Gb ethernet

MAGNETIC BASE
A powerful magnetic base secures the antenna on the top or side of the PC case.

ADJUSTABLE DESIGN
Four-way positioning enables better signal reception.

WI-FI 6E ANTENNA
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5, and 6 GHz bands.

*Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.

AUDIO

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Strix X670E-A Gaming WiFi's SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

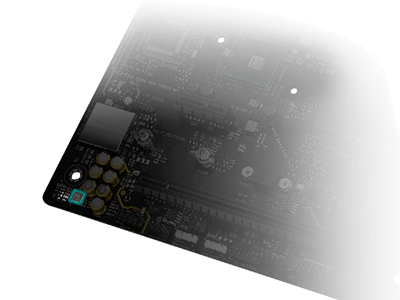

SAVITECH SV3H712 AMPLIFIER

The integrated Savitech amplifier greatly improves THD+N performance from 72 to 83 dB, cleaning up distortion and noise for a clean, pristine sound.

PREMIUM AUDIO CAPACITORS

High-quality components produce a warmer, more natural sound with exceptional clarity and fidelity.

AUDIO COVER

A metal cover protects against electromagnetic interference, preserving the integrity of audio signals to ensure the best sound quality.

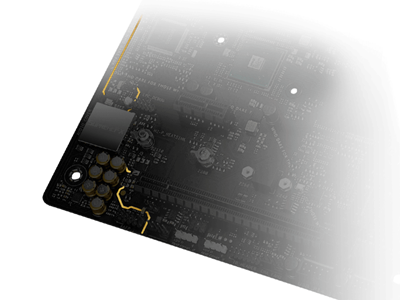

AUDIO-LINE SHIELDING

A specially designed circuit separation reduces electromagnetic interference from the motherboard and attached devices for cleaner audio.

PLAY IN STYLE

A striking silver and white aesthetic with complementary RGB lighting delivers a build that stands out in every way. Pair the Strix X670E-A with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

ID DESIGN

UNDENIABLY ROG STRIX

The ROG Strix X670E-A Gaming WiFi will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated grid design. Parallel strakes and curved text on the VRM, M.2, and PCH heatsinks tie the whole aesthetic together with a clean, modern look.

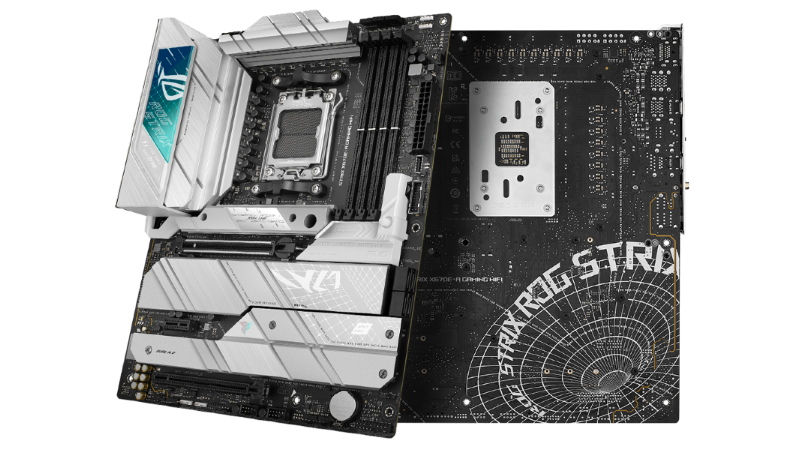

The ROG Strix X670E-A front and back designs offer a clean, modern aesthetic

0:10

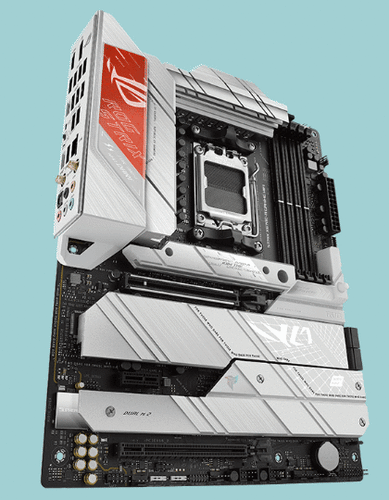

AURA SYNC

GROW YOUR OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

ASUS AURA SYNC

Static

Breathing

Strobing

Rainbow

Color cycle

Starry night

Music effect

Smart

Adaptive color

Dark

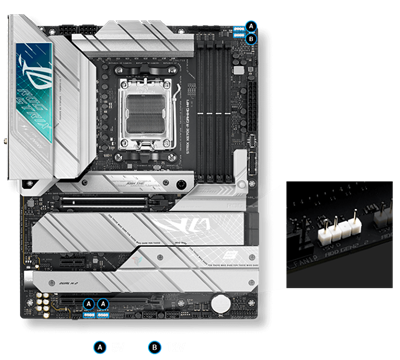

ADDRESSABLE GEN 2 RGB HEADERS

The ROG Strix X670E-A features onboard Gen 2 RGB headers that automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear. The headers are also fully backwards compatible with Gen 1 RGB devices, giving you flexibility to light up as you choose.

ROG Strix X670E-A with an AIO CPU cooler installed

COMPATIBILITY

COOLER COMPATIBILITY

The ROG Strix X670E-A bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.

SOFTWARE UTILITIES

ROG-exclusive software delivers intuitive audio tuning and gaming enhancements, so you can configure your gaming build the way you want.

INTELLIGENT CONTROL

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

TWO-WAY AI NOISE-CANCELATION

This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

HEAR THE DIFFERENCE

0:20

AI ON

AI OFF

AI NETWORKING

GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.

OPTIMIZATION

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Advanced mode

When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.

EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.

S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.

GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase
Restore your SSDs and NVMe storage to factory settings.

Last Modified Log
Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

ASUS User Profile
Port configuration settings between different BIOS versions, or share them with friends.

Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75 °C.

Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

EZ mode

Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.

Storage information
View SATA port details for easy device recognition.

Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.

AI SUITE 3

The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance, cooling, stability, and efficiency via simple and intuitive interfaces.

The TurboV Processing Unit assists with overclocking and monitoring

TPU INSIGHT

The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

The Digi+ voltage-regulator module delivers real-time control to fine-tune CPU power settings

DIGITAL POWER CONTROL

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

TURBO CORE APP

Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.

ADVANCED AUDIO

SONIC STUDIO III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process audio that's true to life.

SONIC STUDIO LINK

Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.

SONIC STUDIO VIRTUAL MIXER

Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.

APP-SPECIFIC PROFILES

Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

DTS SOUND UNBOUND

ROG Strix X670E motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location of every gunshot, footstep, and other sounds.*

*DTS Sound Unbound requires in-game support. Check with game publishers for supported titles.

STEREO SOUND

Discrete left, and right audio channels enable headphone or two-speaker setups.

SURROUND SOUND

Audio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.

SPATIAL SOUND

A virtual 360-degree soundscape immerses you in a realistic sonic experience.

AIDA64

The ROG Strix X670E-A includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.

*Support available for ROG Ryujin II and later models.

ROG X AIDA64 EXTREME

HARDWARE MONITOR DISPLAY

ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.

You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

AURA SYNC

DEVICES

TOOLS

FAN CONTROL

GAMING NEWS HIGHLIGHTS

ASUS ACCOUNT MANAGEMENT

About ASUS

ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.

About ROG

Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.

© 2022 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
