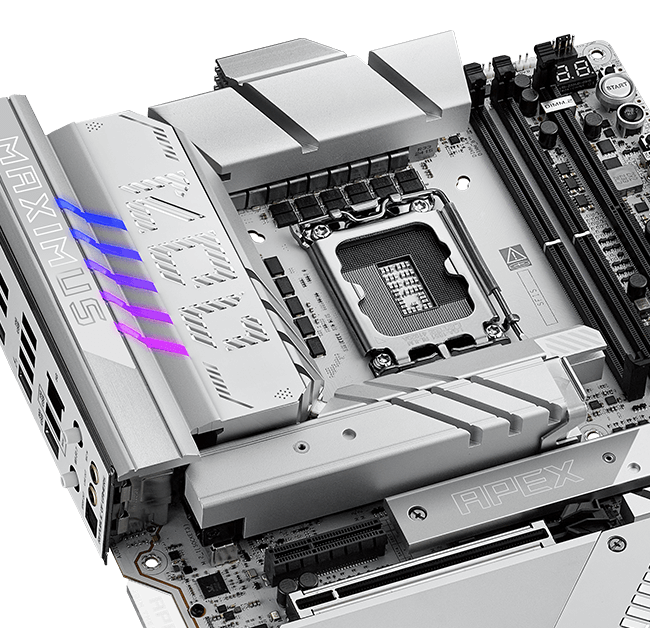

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Teamed Power Solution
Overclocking
Effortless performance boostAI Networking II
AI Cooling II
One-click fan tuning
DDR5
Max. 96 GB, DIMM Fit, DIMM Flex and AEMP IIIROG Memory Fan Kit
Extensive Gen 5
x3 onboard M.2 slots, and x2 PCIe® 5.0 x16 slotsROG DIMM.2
Wi-Fi 7
EZ PC DIY
Thunderbolt™ 4
PERFORMANCE
EXTREME POWER & PERFORMANCE
- DUAL PROCOOL II POWER CONNECTORS
- 22(110 A)+1(90 A)+2(90 A)+2(80 A) POWER STAGES
- EXPANSION SLOTS
- 2 x PCIe® 5.0 x16 Slots
- 2 x PCIe® 4.0 x4 Slots
- Intel® Socket LGA1851
Intel® Core™ Ultra Processors (Series 2) - DDR5, 2 X DIMM
- Max. 96 GB
- Dual Channel
- 6 x M.2 SLOTS
- 1 x M.2 22110 (PCIe® 5.0 x4)
- 1 x M.2 2280 (PCIe® 4.0 x4)
- 2 x M.2 2280 (PCIe® 5.0 x4)
- 2 x M.2 22110 (PCIe® 4.0 x4) (via ROG DIMM.2 Card)
COOLING
COMPREHENSIVE COOLING
- INTEGRATED I/O COVER & VRM HEATSINKS
- HEATSINKS FOR Four M.2 SLOTS
With backplates and thermal pads
- MULTIPLE 4-PIN PWM FAN HEADERS
ROG DIMM.2 CARD HEATSINK - ROG MEMORY FAN KIT
GAMING IMMERSION
TOTAL GAMING IMMERSION
-
AURA LIGHTING
- SUPREMEFX 7.1 ALC4080 AUDIO CODEC
- Savitech SV3H712 AMP
- 120 dB SNR stereo playback output
- 110 dB SNR recording input
- Gold-plated audio jacks
- 3 X 3-PIN ADDRESSABLE GEN 2 RGB HEADERS

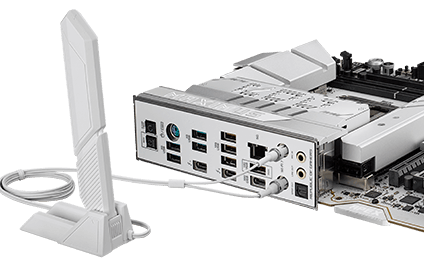

CONNECTIVITY
FULL CONNECTIVITY

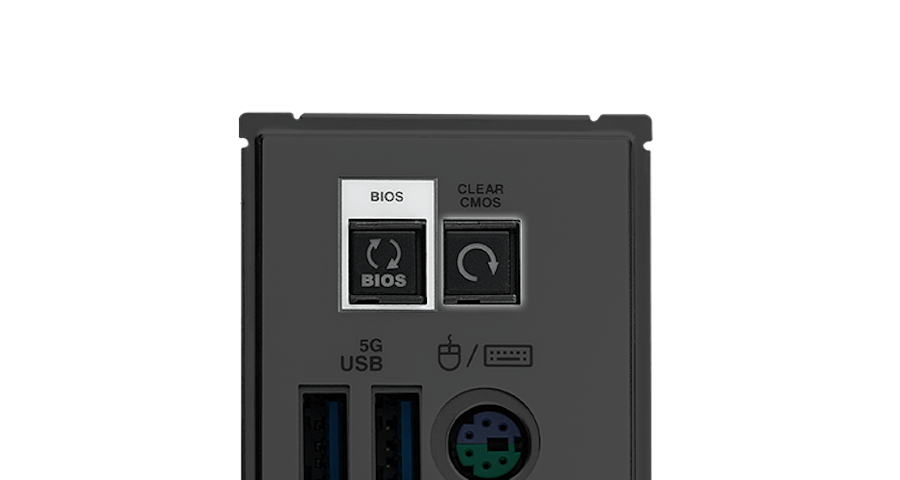

- BIOS FLASHBACK™ BUTTON
- CLEAR CMOS BUTTON
- 1 X PS/2 KEYBOARD/MOUSE COMBO PORT
- 4 X USB 5 GBPS PORTS
(4 x Type-A) - 2 X THUNDERBOLT™ 4 USB TYPE-C® PORTS
- 4 X USB 10 GBPS PORTS
(4 x Type-A) - 1 X USB 20 GBPS PORTS
(1 x USB Type-C®)
- REALTEK 5 GB ETHERNET PORT
- WI-FI 7
- OPTICAL S/PDIF OUT
- 2 X GOLD-PLATED AUDIO JACKS
- 1 X USB 20 GBPS
USB Type-C® front panel connector supports QC4+ - 1 X USB 10 GBPS
USB Type-C® front panel connector - 4 X SATA 6 GB/S
ASUS AI
INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of Wi-Fi 7*.*Features may vary by model.
.gif)
TRAFFIC MONITOR
Armoury Crate's Traffic Monitor tracks your current Wi-Fi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.*The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.
.gif)
FAST CHECK
Armoury Crate’s Fast Check empowers users to rapidly detect Wi-Fi signal strength..gif)
DIRECTION FINDER
Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.*The Direction Finder is only compatible with connections in the 5 GHz and 6 GHz bands
.jpg)
GAMEFIRST
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions.AI OVERCLOCKING
Tuning is now faster and smarter than ever before..gif)
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.AI COOLING II
Balance the thermals and acoustics of any build with a single click..jpg)
AI COOLING II
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.*Availability of ASUS AI Advisor may vary by region.
ASUS AI ADVISOR
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
*Availability of ASUS AI Advisor may vary by region.
*Availability of ASUS AI Advisor may vary by region.
Performance
OVERCLOCKING
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.* The overclocking performance may vary depending on the CPU series and motherboard used.
** Testing was conducted with an Intel® Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
.png)

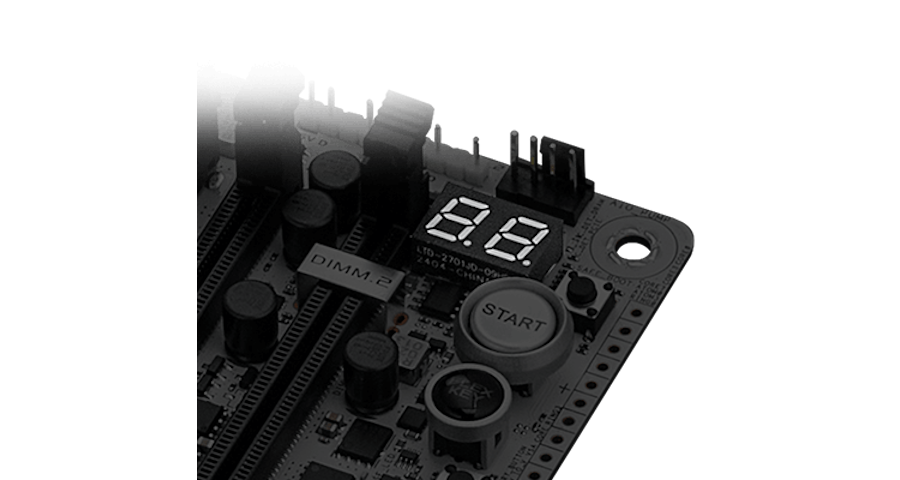

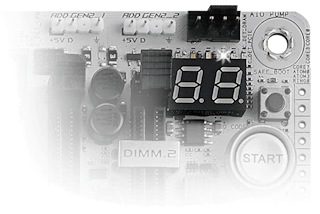

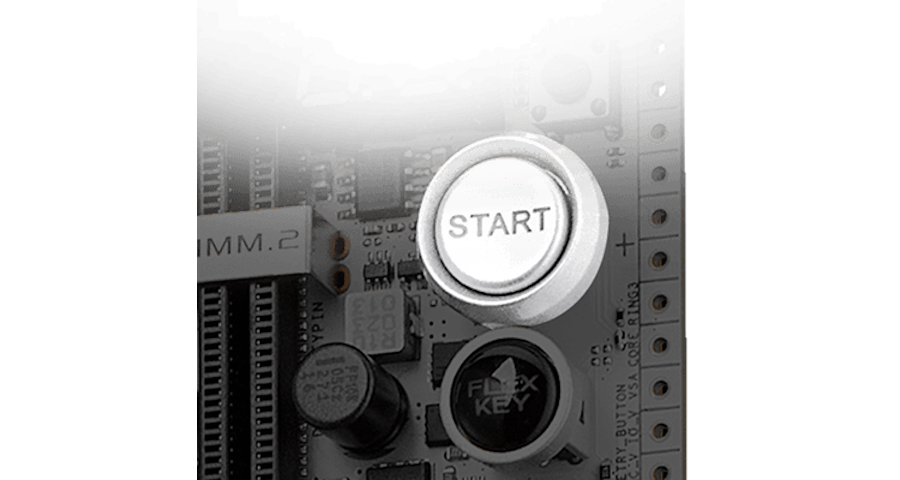

OVERCLOCKER'S TOOLKIT
The ROG Overclocker’s Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
SAFE BOOT BUTTON
Instantly reset the PC and boot directly into Safe mode.
BCLK BUTTONS
Adjust the BCLK frequency to improve system performance.
PROBEIT
Includes eighteen integrated measurement points for advanced tuning.
RETRY BUTTON
Instantly initiates a hard reset with just a press.
Instantly reset the PC and boot directly into Safe mode.
BCLK BUTTONS
Adjust the BCLK frequency to improve system performance.
PROBEIT
Includes eighteen integrated measurement points for advanced tuning.
RETRY BUTTON
Instantly initiates a hard reset with just a press.
SLOW MODE SWITCH
Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
RSVD SWITCH
Helps the system boot under extreme temperatures (≤ -120°C)
LN2 MODE
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
BIOS SWITCH
Switches between BIOS 1 and 2.
Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
RSVD SWITCH
Helps the system boot under extreme temperatures (≤ -120°C)
LN2 MODE
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
BIOS SWITCH
Switches between BIOS 1 and 2.
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Apex features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
CONDENSATION DETECTION
Specialized circuitry allows ROG Maximus Z890 Apex to detect when condensation occurs on the back of the board. Divided into three distinct sections — CPU, DRAM, and PCIe® — the feature provides a useful warning when an area may be at risk of short-circuiting.
.png)
CPU LED
Flashes when condensation is detected near the CPU
.png)
DRAM LED
Flashes when condensation is detected near the DRAM
.png)
PCIe® LED
Flashes when condensation is detected near the PCIe® slot
Performance
MEMORY

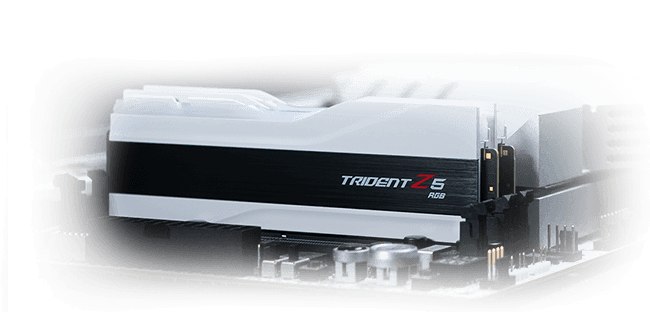

DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven beyond the 9 GT/s mark on the ROG Maximus Z890 Apex*.*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
.png)
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven as far as 9 GT/s on the Maximus Z890 Apex, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.The ROG Maximus Z890 Apex is also equipped with the ROG Memory Fan Kit – a cooling solution to solidify DDR5 stability and unleash memory overclocking. With the ROG Memory Fan Kit, your DDR5 modules can push the boundaries and reach overclocking speeds of 9000+ MT/s. Experience superior cooling performance and unlock the full potential of your memory with ease.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.DIMM FIT
DIMM Fit offers peak efficiency, compatibility, and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*
*Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel® Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
*Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel® Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
DIMM FLEX
DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.
.png)
.png)
Metro Exodus
Extreme preset 2560 x 1440Counter-Strike: Global Offensive
MAX FPS preset 3840 x 2160* Results may vary according to the capabilities of your CPU, graphics card, motherboard, and memory modules.
** The comparison chart is based on a test with an Intel® Core i9-14900K processor, ROG Strix Z790-E Gaming Wi-Fi II motherboard, ROG Strix GeForce RTX™ 4090 OC Edition 24 GB graphics card, and G.SKILL DDR5 memory modules (model F5-7200J3646F24GX2-TZ5RK).
** The comparison chart is based on a test with an Intel® Core i9-14900K processor, ROG Strix Z790-E Gaming Wi-Fi II motherboard, ROG Strix GeForce RTX™ 4090 OC Edition 24 GB graphics card, and G.SKILL DDR5 memory modules (model F5-7200J3646F24GX2-TZ5RK).

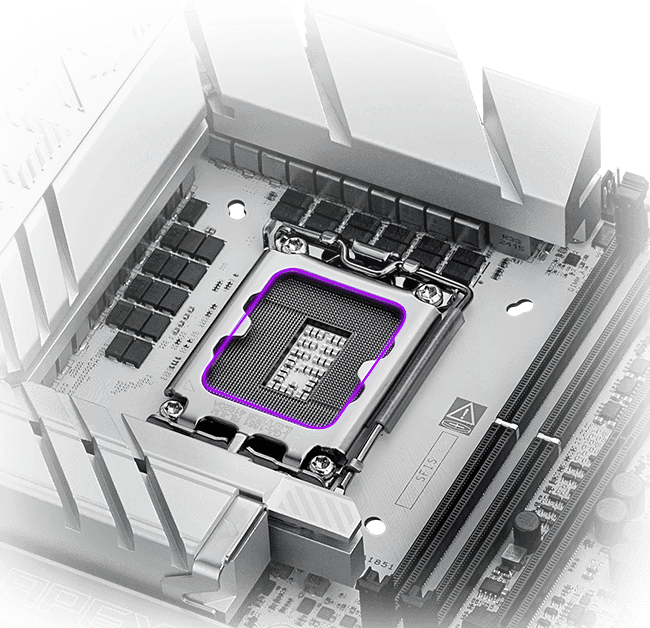

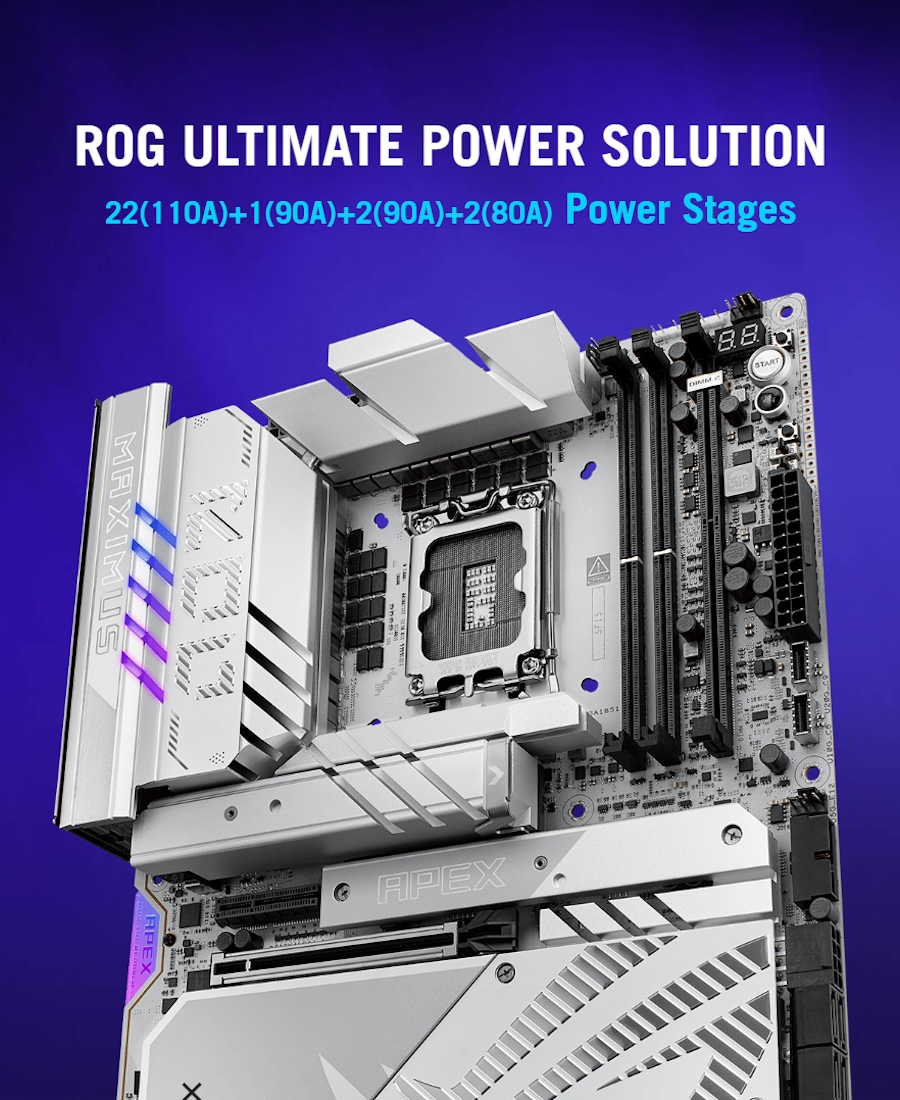

POWER SOLUTION
.jpg)
COOLING

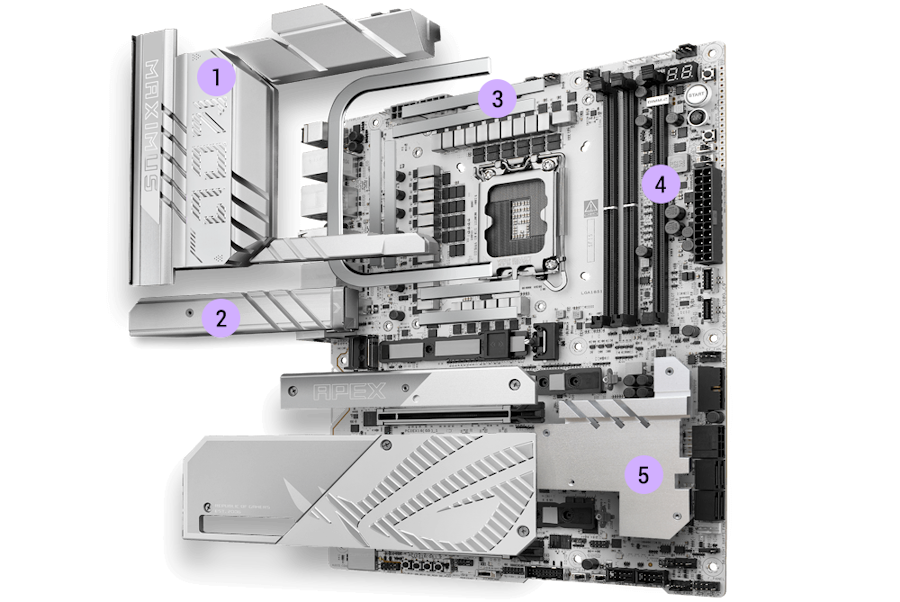

- VRM HEATSINK ARRAY
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation. - M.2 HEATSINKS AND BACKPLATES
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four onboard M.2 slots have dedicated backplates for additional heat dissipation. - HIGH-CONDUCTIVITY THERMAL PADS
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
- HIGH-CONDUCTIVITY THERMAL PADS
Two additional M.2 slots are kept cool with the DIMM.2 card's hefty heatsinks.
- CHIPSET HEATSINK
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
THERMAL MANAGEMENT
An extensive array of headers allows for precise cooling control and monitoring.
.png)
Multiple temperature sources
Each header can be set to monitor and react to user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
.png)
4-pin fan headers
Every onboard header supports auto-detection of DC or PWM fans.
.png)
AIO pump header
A dedicated PWM/DC header for self-contained water-cooling setup.
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z890 motherboards, empowering you to build your dream gaming rig.
CONNECTIVITY

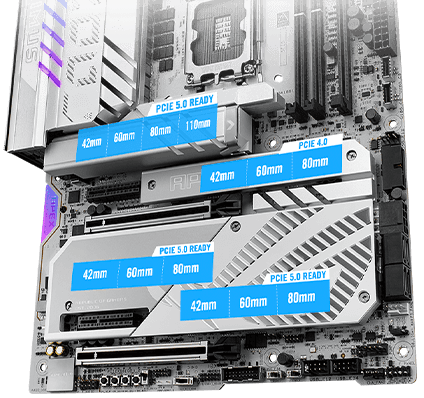

M.2 SLOTS WITH ROG M.2 POWERBOOST
The ROG Maximus Z890 Apex features three PCIe® 5.0 M.2 slots and one PCIe® 4.0 M.2 slot onboard, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance..png)
M.2 SLOTS WITH ROG M.2 POWERBOOST FOUR ONBOARD M.2 SLOTS
The ROG Maximus Z890 Apex features four onboard M.2 slots, three of which are PCIe® 5.0-ready to offer blistering 16 GB/s speeds, while the other slot offers still-impressive 8 GB/s through the PCIe® 4.0 interface.ROG M.2 POWERBOOST
ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD..png)

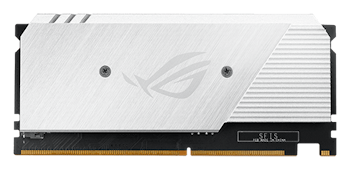

ROG DIMM.2 CARD
The ROG DIMM.2 card allows you to easily mount two M.2 drives next to the memory slots, where its large heatsinks benefit directly from chassis airflow for prime cooling performance.PCIE® 5.0 EXPANSION SLOTS
Both PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim fully support next-gen graphics cards..png)

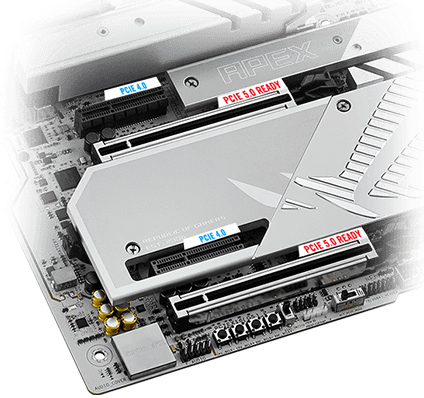

PCIE® 5.0 EXPANSION SLOTS
Both x16 expansion slots offer PCIe® 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe® Slot Q-Release Slim.USB PORTS
.png)
TWO THUNDERBOLT™ 4 TYPE-C® PORTS
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt™ Display function supports up to 8K with DSC. Please see specifications for more details..png)
ONE USB 20 GBPS & ONE USB 10 GBPS TYPE-C® FRONT PANEL CONNECTORS
The USB 20 Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60 W.*USB Type-C® power delivery output: 5/9/15/20 V max. 3 A, PPS:3.3–21 V max. 3 A.
**To support 60 W, please install the power cable to the 8-pin PCIe® power connector or else only 27 W will be supported.
USB WATTAGE WATCHER
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 20 Gbps Type-C® front-panel connector. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.
WI-FI7
320
MHz
MHz
6 GHz
band
band
4096
QAM
QAM
up to 4.8X
ultra-fast Wi-Fi speeds
ultra-fast Wi-Fi speeds
5 GB ETHERNET
WI-FI 7
The revolutionary Wi-Fi 7 is up to 4.8X times faster than standard Wi-Fi 6*, thanks to tech like 320 MHz channels** on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.*Wi-Fi 7 features require onboard Wi-Fi chipset, Wi-Fi AP, and Wi-Fi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.
5 GB ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet..png)

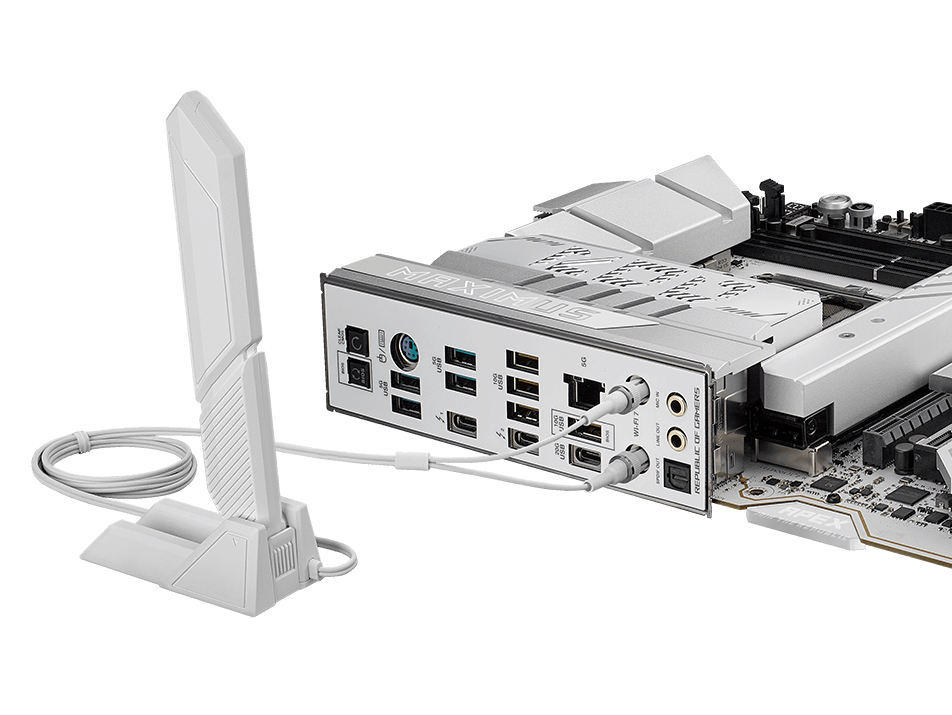

ASUS WI-FI Q-ANTENNA
Dual transceivers support the 2.4, 5 and 6GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.Wireless Signal Reception Improvement
Versus previous-generation antenna
Up to +6%
6 GHz
6 GHz
Up to +18%
5/2.4 GHz
5/2.4 GHz

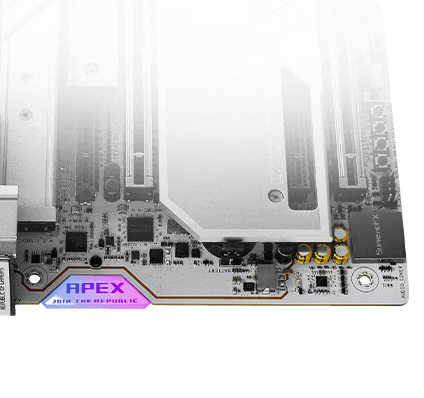

GAMING AUDIO
ROG SupremeFX
Dolby Atmos
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Maximus Z890 Apex's SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback. The front-panel output is streamed through a highly integrated Savitech amplifier that is capable of driving a wide variety of gaming headsets and high-fidelity headphones.
.png)
AUDIO LINE SHIELDING
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio..png)
SAVITECH SV3H712 AMPLIFIER
The integrated Hi-Fi Savitech amplifier holds up its end of the signal path with -89 dB THD+N and a signal-to-noise ratio of 114 dB, bringing pristine audio to gaming headsets and premium cans..png)
CAPACITORS
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity..png)
ALC4080 CODEC
Instead of the conventional high-definition audio (HDA) interface, the ALC4080 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution..png)
SWITCHING MOSFETS
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs..jpg)
0:09
DOLBY ATMOS
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
EZ PC DIY
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
ADVANCED MODE
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
.jpg)
My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.
EZ Flash
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe™ storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Quickly locate tuning options and add preferred tools to your favorites list.
EZ Flash
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe™ storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
SOFTWARE
ASUS DRIVERHUB
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
SEAMLESS DUAL-PC SHARING WITH THUNDERBOLT™ SHARE
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share — the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.
Control Other Computer
Sync Files
Drag and Drop
Transfer Data to a New Computer
ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or Wi-Fi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.Mirror
Extend
(PC to Mobile)
Extend
(PC to PC)
Unify Control
HWINFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
AIDA64 EXTREME
The ROG Maximus Z890 Apex includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin III and later models.
*Support available for ROG Ryujin III and later models.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
PERSONALIZATION
GLOW YOUR GAMING WORLD WITH AURA SYNC
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
ADDRESSABLE GEN 2 RGB HEADERS
The addressable Gen 2 RGB headers can be controlled with Aura software, which automatically tailors your preferred lighting effects to the number of LEDs present in the connected gear or strip. The new headers also offer backward-compatibility with existing Aura RGB components.
Dare to Be Green
ROG at the Republic of Gamers is on a mission to create a sustainable future where all gamers can flourish on the planet ROG calls home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
- The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (™, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.
- The terms HDMI™ and HDMI™ High-Definition Multimedia Interface, HDMI™ Trade dress and the HDMI™ Logo are trademarks or registered trademarks of HDMI™ Licensing Administrator, Inc. in the United States and other countries.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C® will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
About ASUS
ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2022 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise.
About ROG
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.
© 2022 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
