Overview
ProArt B760-Creator D4 motherboard

ProArt B760-CREATOR D4

ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector and a Thunderbolt™ 4 header.

Intel® CPU and chipset logo 3 months free Adobe Creative Cloud logo

PcIe 5.0 logo
USB 3.2 logo
12+1 teamed power solution rated for 60A per stage logo

PCIe® 5.0 for graphics cards

USB 3.2 Gen 2 Type-C® and a front-panel USB 3.2 Gen 2x2 Type-C connector​

12+1 teamed power solution rated for 50A per stage

2.5 Gb & 1 Gb Ethernet logo
DDR5 logo
ProArt Creator Hub

2.5 Gb & 1 Gb Ethernet

DDR4 memory support

ProArt Creator Hub

Spec Overview

Connectivity

ProArt B760-Creator D4 motherboard connectivity features
  1. DisplayPort™ (8K@60 Hz)​
  2. HDMI® port (4K@60 Hz)​
  3. 4 x USB 2.0 ports
  4. 4 x USB 3.2 Gen 1 ports
  5. 1 x USB 3.2 Gen 2 Type-C® port
  6. 2.5 Gb & 1 Gb Ethernet
  7. 1 x Optical S/PDIF out port
  1. 5 x Audio jacks
  2. 1 x M.2 Slot (Key E)​
  3. 1 x USB 3.2 Gen 1 front-panel header
  4. 1 x USB 3.2 Gen 2x2 Type-C® front-panel connector
  5. 4 x SATA 6 Gb/s
  6. 2 x USB 2.0 headers
  7. 3 x Aura addressable Gen 2 headers
  8. 1 x Aura RGB header

Performance

ProArt B760-Creator D4 motherboard performance features
  1. ProCool power connectors
  2. Expansion slots
    • 1 x PCIe® 5.0 x16 SafeSlot
    • 1 x PCIe® 4.0 x16 slot (Max. x4)
    • 1 x PCIe® 3.0 x1 slot
  3. Crystal Sound 3
    • Realtek 7.1-channel audio codec​
    • De-pop circuit
    • Audio cover
    • Premium audio capacitors
    • Dedicated audio PCB layers
  4. 12+1 power stages (50A)
  5. Intel® LGA1700 socket for 13th &
    12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  1. 4 x DDR4, DIMM slots (Max. 128 GB)
    • ASUS OptiMem II
    • Dual Channel
  2. 1 x PCIe® 4.0 M.2 slot with heatsink
    • 1 x 22110 (PCIe® 4.0 x4)
  3. Intel® B760 Chipset
  4. 1 x PCIe® 3.0 M.2 slot
    • 1 x 22110 (PCIe® 3.0 x4)
  5. 1 x PCIe® 4.0 M.2 slot with heatsink
    • 1 x 22110 (PCIe® 4.0 x4)

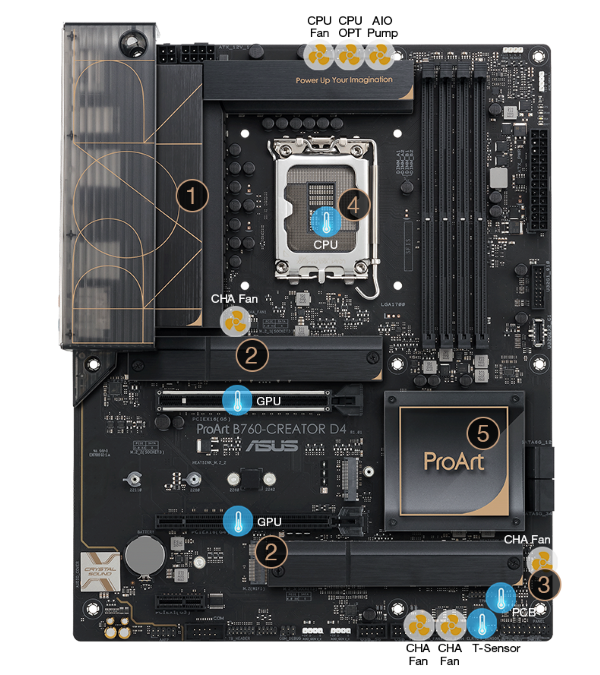

Cooling

ProArt B760-Creator D4 motherboard cooling features
  1. VRM heatsinks
  2. M.2 heatsinks
  3. 4-pin PWM/DC fan headers
    Every onboard header supports auto-detection of PWM or DC fans.
  1. Multiple temperature sources
    Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.
  2. Chipset heatsink

DIY Friendly

DIY-friendly features of the ProArt B760-Creator D4 motherboard
  1. SafeSlot
    Provides stronger PCIe® device retention and greater shearing resistance.
  2. Q-DIMM
    One‑sided clips for simple and secure handling of memory modules.
  3. Q-LED
    Indicates CPU, memory, graphics card or boot device issues for quick diagnosis.
  1. SafeDIMM
    A fortified metal divider for added support and damage prevention.
  2. M.2 Q-Latch
    Simple locking mechanism to secure an M.2 SSD without the need for specific tools.
    M.2 Q-Latch
  3. Q-Connector
    Sorts all front-panel cables for smoother installation.

Comprehensive Connectivity

PCIe® 5.0 for graphics cards

The 13th Gen Intel® processors offer PCIe® 5.0 support, which offers twice the data transfer speed of PCIe® 4.0, making it robust enough to handle new data-heavy tasks. PCIe® 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe® versions.
ProArt B760-Creator D4 supports PCIe 5.0 for graphics cards
ProArt B760-Creator D4 features a USB 3.2 Gen 2x2 Type-C® front-panel connector

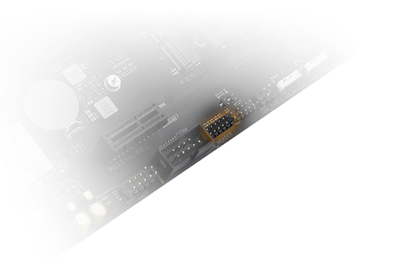

ProArt B760-Creator D4 features a Thunderbolt™ (USB4®) header

Front USB3.2 Gen 2x2 Type-C®

A full complement of USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C® connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.​

Thunderbolt™ / USB4® support

The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.

*ASUS add-on card is sold separately.​

Networking

ProArt B760-Creator D4 features 2.5 Gb and 1 Gb Ethernet ports
ProArt B760-Creator D4 features an M.2 slot (key E)

Dual Ethernet

2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.​

M.2 Slot (Key E)

The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 Wi-Fi/Bluetooth modules*.​​

*Wi-Fi/BT modules are sold separately.

PCIe® 4.0 M.2 Storage

The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe® 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe® 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
ProArt B760-Creator D4 features three onboard M.2 slots

The core of your powerful workstation

Robust power design



ProArt B760-Creator D4 offers robust power delivery with 12+1 power stages.

12+1 teamed power stages

Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of​ the latest 13th & 12th Gen Intel® Core processors.​
Chokes & capacitors

Chokes & capacitors

Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

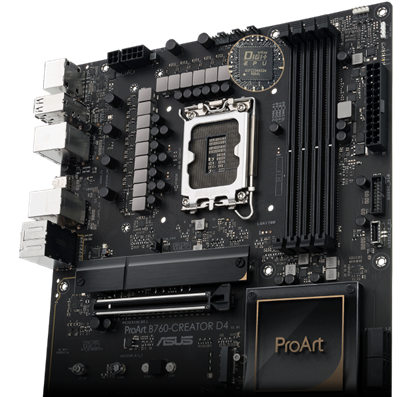

Digi+ power control

Digi+ power control

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool power connectors

ProCool power connectors

These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
ProArt B760-Creator D4 supports up to 128 GB of DDR4 memory

DDR4 Memory​​

​ProArt B760-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.​

Flexible Air- and Liquid-Cooling Controls

ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Fan Xpert4 user interface

Everything you need to optimize workflows

Two-Way AI Noise-Cancelation

As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise-Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.​

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

Hear the
difference

AI OFF 0:20
AI ON 0:20

AI Noise-Cancelation OFF

AI Noise-Cancelation ON

Customize your personal settings

ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.
CPU Load focus

Hardware monitoring

This section offers detailed info on your system status and connected ProArt devices.​
Full Speed focus

Fan profile setting

Four performance presets can quickly adjust the balance of noise and cooling for all fans connected to the motherboard.
Adobe Apps lightbox

Task grouping

To streamline your workflow, you can select up to eight apps to be launched at the same time from the desktop.
Creation First focus

Network optimization

CreationFirst is a network optimization application that offers five network modes to optimize bandwidth efficiency for different tasks.​

Security control and remote management

Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.
ProArt B760-Creator D4 makes it easy to manage USB ports
ProArt B760-Creator D4 includes a software blacklist
ProArt B760-Creator D4 can prevent unauthorized changes to system configurations

USB port management

Enable or disable the USB port or set it to Read-Only to prevent data leaks.

Software blacklist

For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor on/off

Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

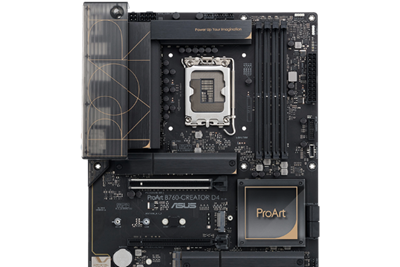

ProArt B760-Creator D4

Trusted stability

ProArt B760-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
24/7
Reliability

45 °C
Temperature

168 Std.
Durability test

80%
Relative humidity

ASUS Now with Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products

Get three months of Adobe Creative Cloud for free with the purchase of ProArt ProArt B760-Creator D4 motherboard
